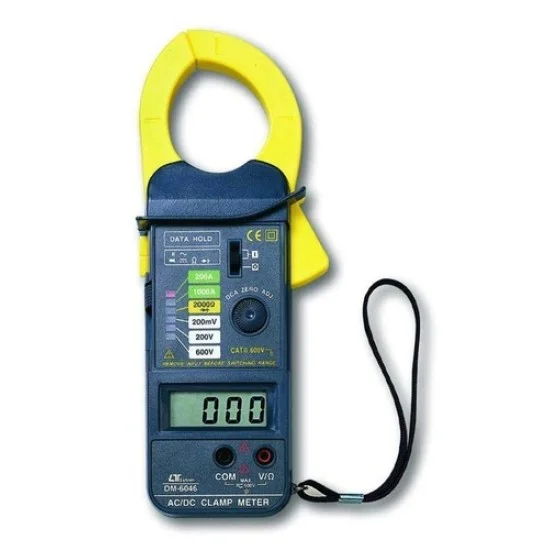

The latest Lutron DM-6046 Digital Ac/Dc Amps Clamp Meter price in Pakistan is Rs. 68,000/- updated on July 22, 2026.
FEATURES:
- Measure max. 1000 A DCA or ACA by the inductive conductor, contactless.
- Economical cost with professional quality.
- Design meet IEC 1010 safety requirement
- ACA, DCA, ACV, DCV, ohms, Diode.
- Built-in Data Hold function.
- LCD display, easy & clear readout.
- High internal impedance, assures min. measuring error.
- LSI-circuit provides high reliability and durability.
- Built-in low battery indicator.
- Overload protection circuit is provided for all range.
- Compact & heavy duty ABS housing plastic case.
Documents:
Lutron DM-6046 Digital Ac/Dc Amps Clamp Meter Data Sheet.pdf
Display Specification
| Display | 13 mm (0.5′) LCD, 3 1/2 digits Max. indication 1999. |
POWER
| AC Voltage | 200 V – 600 V |
Summary
| DC Voltage | 200 V – 600 V |
| Sampling Time | Approx. 0.4 second. |
| Weight | 400 g/0.90 LB (including battery) |
HARDWARE FEATURES
| Power Consumption | Approx. DC 10.8 mA. |
TECHNICAL SPECIFICATION
| Operating Humidity | Less than 80% RH. |
General Specification
| AC/DC Current | 200 A – 1000 A |
| Battery | Heavy duty type, DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent. |
| Current Sensor | Hall effect sensor |
| Measurement Range | ACA, DCA, ACV, DCV, ohms, Data hold. |
| Operating Temperature | 0 to 50 (32 to 122 ) |
| Over Input | Display shows ‘1’ or ‘-1’ |
| Polarity | Automatic Switching, ‘ – ‘ indicates negative polarity. |
| Dimension | 230 x 70 x 36 mm(9.1 x 2.8 x 1.4 inch) |
