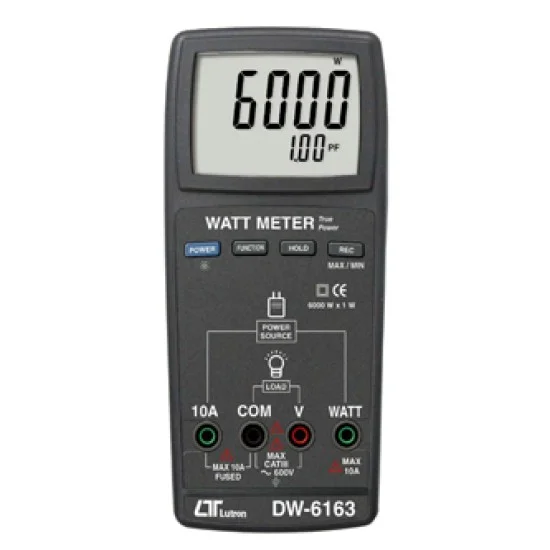

The latest Lutron DW 6163 Watt Meter price in Pakistan is Rs. 45,000/- updated on September 9, 2026.
OVERVIEW:
- Lutron DW-6163 digital precision watt meter has professional 1 W resolution digital watt meter display, reliability, durability, direct operation, 6000W x 1W, ACV 600V x 0.1V, ACA 10A x 10mA, true power and wide range 0W to 6000W, true RMS measurement ACV/ ACA, super large LCD, dual display at same time, full function auto range, memory record, data hold, Rs. 232/ USB computer interface, built-in low battery indicator, built-in backlight easy to readout, power DC 9V or AC to DC 9V adapter in.
Features:
- True power measurement.
- True rms measurement for ACV, ACA
- Watt : 0 to 6000 W x 1 W
- Power factor : 0.01 to 1.00 x 0.01 P
- ACV : 0 to 600 V X 0.1 V.
- ACA : 0 to 10.00 A x 0.01 A.
- ACV input impedance : 10 Mega OH
- Data Hold, Record ( Max., Min. ).
- Rs. 232/USB Computer interface.
- Optional data Acquisition software,
- SW-U801-WIN, SW-E802.
- Optional USB cable, USB-01.
Documents:
Display Specification
| Display | Large LCD display max. reading 9999. Digit size : 21.8 x 8.5 mm. Dual value display with backlight |
Summary
| Measurement Unit | ACV 0 to 600.0 V ACA 0.01 to 10.00 A WATT 0 to 6000 W PF 0.01 to 1.00 |
| Sampling Time | Approx. 1 second . |
| Operation Temperature | 0℃ to 50℃ ( 32℉ to 122℉). |
| Weight | 398 g |
| Circuit | Custom one-chip of microprocessor LSI circuit. |
HARDWARE FEATURES
| Power Supply | Alkaline or Heavy duty type DC 9V battery 006P , MN1604 (PP3) or equivalent. |
General Specification
| Operation Humidity | Less than 80% RH |
| Over Input | ” —- ” mark indication . |
| Zero | Automatic adjustment |
