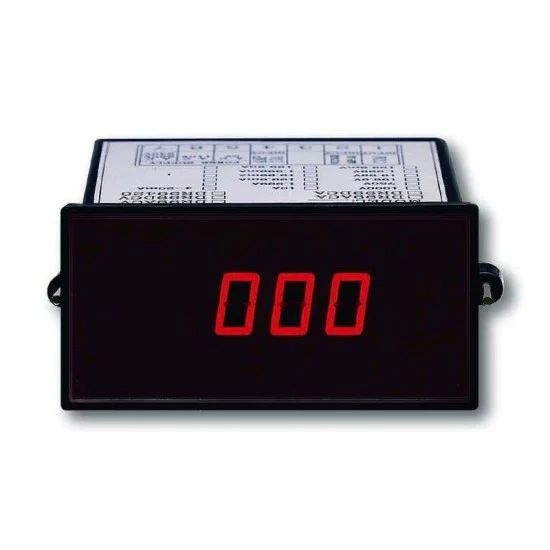

The latest Lutron FC-422D Frequency Meter price in Pakistan is Rs. 93,000/- updated on September 11, 2026.
OVERVIEW:
- Explore roshanex.pk to find out the latest Lutron products & other electronic components at discounted prices in Pakistan with free cash on delivery service across Pakistan. We are dealing Lutron in Pakistan.
Documents:
Display Specification
| Display | 14.3 mm ( 0.56′ ) high brightness red LED. 4 digits. |
Summary
| Resolution | 0.01 Hz ≧ 100 Hz, 0.1 Hz < 100 Hz. |
| Sampling Time | 1 sec.- over 1 Hz. |
| Depth | behind panel 104 mm. |
HARDWARE FEATURES
| Standard Type | DIN standard. |
| Power Consumption | Approx. AC 16 mA ( AC 110V power). | Approx. AC 9 mA ( AC 220V/230 power). |
General Specification
| Accuracy | ± (0.05% + 1 d). |
| Case | 92 mm x 42 mm |
| Frequency Range | 0.5 to 500.0 Hz. |
| Operating Humidity | Less than 80% RH. |
| Operating Temperature | 0 to 50℃ ( 32 to 122 ℉ ). |
| Input Voltage | 5 to 250 ACV. |
| Power Supply | AC 110V, AC220V, 50/60 Hz ( or 230V internal adjustment ). |
| Dimension | Case Size :Front panel :96 mm x 48 mm |
