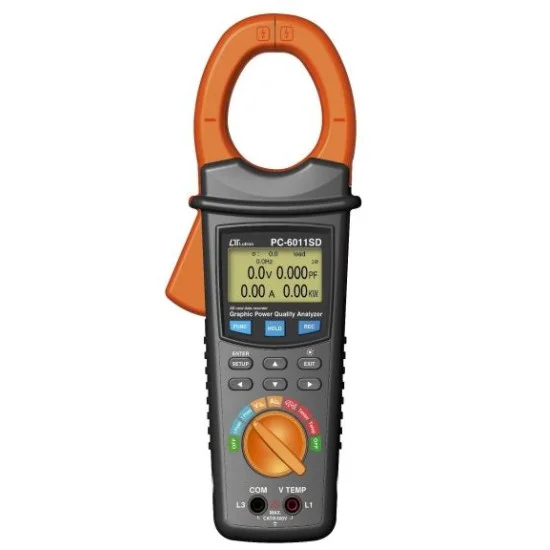

The latest Lutron PC-6011SD Power Clamp Meter price in Pakistan is Call for Price updated on September 9, 2026.
FEATURES:
- Real time data logger, save the data into the micro SD memory card and can be downloaded to the Excel, extra software is no need.
- Real time data logger, built-in clock (year/month/date/hour minute/second ),sampling time can be set from 2 to 7200 seconds.
- Applications : Power quality analysis for single and balanced three phase systems.
- True RMS value for voltage and current measurements.
- True Power ( KW, MW, GW ).
- Apparent Power ( KVA, MVA, GVA ).
- Reactive Power ( KVAR, MVAR, GVAR ).
- Watt-Hour ( KWH, KVAH, KVARH ).
- Power Factor ( PF ), Phase Angle (Θ ).
- Voltage range : 10 to 600 ACV.
- Current range : 10 to 2000 ACA.
- Harmonics display ( 1 – 50th order ).
- Display of wave form with peak value.
- Analysis of total harmonic distortion.
- Graphic phase diagram with balanced 3-phase system.
- Capture transient events ( including Dip, Swell and Outage ) with programmable threshold ( % ).
- Programmable PT ratio ( 1 to 1000 ).
- ACV input impedance is 10 Mega ohms.
- SD memory card capacity : 1 GB to 4 GB, micro SD card.
- Built-in the ” Hard copy ” function, it can be saved and converted the Display diagram to the BMP file.
- Powered by DC 1.5V ( UM-3/AA ) x 2 PCs batteries ( Alkaline type ) or DC 9V adapter. SD card data record function is available when the power supply is to use the DC 9V adapter.
- Rs. 232/USB computer interface.
- Optional USB cable, USB-01.
- Optional data acquisition software, SW-U801-WIN, SW-E802.
Documents:
Display Specification
| Display | LCD Size 3.2 x 2.4′ (60 x 44.4mm ) dot Matrix backlit LCD (128 x64 pixels) |
Summary
| Conductor size | Max : Clamp can accommodate up to 2.2′ (57 mm) diameter |
| Current range | 5 ACA to 2000 ACA (Auto Range) |
| Measurement | ACV / ACA / KW / KVA / KVAR /PF /KWH KVAH /KVARH /PFH /power factor /phase angle /frequency / Harmonics display / Temperature |
| Overload protection | ACV : 720 ACV RMS, ACA : 2100 ACA with clamp probe |
| Safety Standard | IEC1010 CAT IV 600 V |
| Voltage range | 10 ACV to 600 ACV (Auto Range) |
| Circuit | Custom single-chip microprocessor LSI circuit |
HARDWARE FEATURES
| Impedance | ACV Input : 10 M ohms |
| Power Consumption | 60 mA DC |
| Power Supply | DC 1.5V, AA ( UM-3 ) Battery X 2 PCs (Alkaline or heavy-duty battery). AC to DC 9V power adapter ( LINEAR 110/220V ) |
TECHNICAL SPECIFICATION
| Data Output | Computer interface |
| Operating Humidity | 80% Relative Humidity max. |
| Operating Temperature | 0 to 50 ( 32 to 122 ). |
| Sampling Time | Approx. 1 second |
| Wire configuration | 1 Phase, 3 Phase |
General Specification
| Frequency response | Clamp : 40 Hz to 1 KHz |
| Dimensions | 11.0 X 4.2 X 1.9′ (280 X 106 X 47mm) Clamp Jaw: 3.5′ (90 mm) |
INTERFACE
| USB | Connect the optional USB cable USB-01 will get the USB plug. Connect the optional Rs. 232 cable UPCB-02 will get the Rs. 232 plug |
