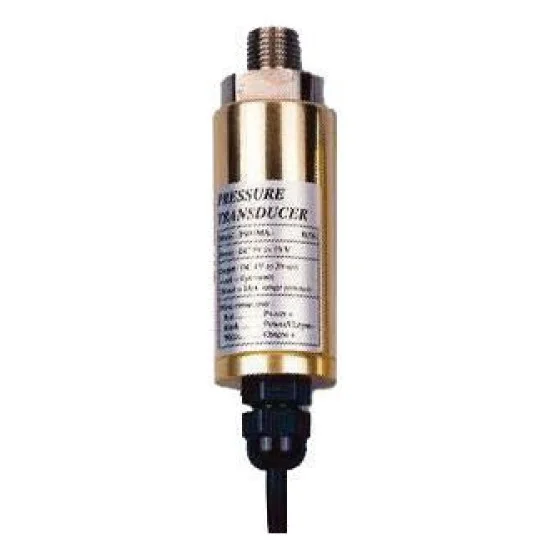

Lutron PS100-400Bar Pressure Sensor For Pressure Meter (PS-9302)
, ,

Lutron PS100-400Bar Pressure Sensor For Pressure Meter (PS-9302)

Compare

₨165,000.00

The latest Lutron PS100-400Bar Pressure Sensor For Pressure Meter (PS-9302) price in Pakistan is Rs. 165,000/- updated on September 8, 2026.

Documents:

Lutron PS100-400Bar Pressure Sensor For Pressure Meter (PS-9302) Data Sheet.pdf

Summary

CapacityMax : 400 BAR (5800 PSI)
Overload protectionfor the pressure sensor: 150% max. capacity
Weight160 g
Size30 mm dia. x 85 mm

HARDWARE FEATURES

Supply VoltageDC 9V

Physical & Electrical

Cable Length1m

TECHNICAL SPECIFICATION

Type Of PressureGauge Pressure

General Specification

ApplicationOptional pressure transducer for the pressure meter PS-9302
Measurement Range100bar/ 1450psi/ 101.9 Kg/cm2/ 75000 mmHg/ 2952 inch Hg/ 1019 meter H2O/ 40100 inch H2O/ 98.7 atmosphere
Operating HumidityMax. 80% RH
Operating Temperature0 C to 60 C (32 F to 140 F)
OutputFull capacity output = 100 mV DC
Wire connections4 pins standard DIN plug to cooperate the PS-9302 input socket
Dimension30 x 85 mm.
