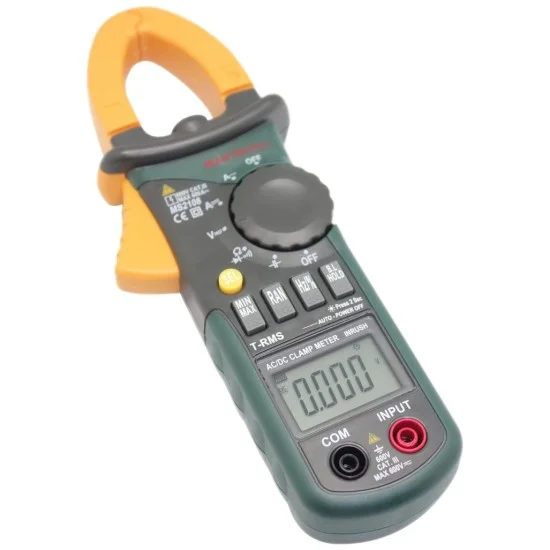

Mastech MS2108 Clamp Multimeter


21,740.00

The latest Mastech MS2108 Clamp Multimeter price in Pakistan is Rs. 21,740/- updated on June 24, 2026.

OVERVIEW:

  • MASTECH MS2108 DC AC CURRENT PROFESSIONAL DIGITAL CLAMP MULTIMETER VOLTAGE FREQUENCY METER
  • This Professional Clamp Meter has multi-functions including measurements of AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode and continuity test.
  • It can be clamped around an electrical conductor to measure frequency, AC/DC current and duty cycle without any physical contact.
  • With LCD backlight, clamp light, analog bar, relative value measuring, auto range function, maximum/minimum value measuring, this clamp meter is an ideal multi-function instrument for use in the fields, workshop, school and home applications.

Features:

  • Perform measurements of AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode and continuity test.
  • Measuring frequency, AC/DC current and duty cycle by clamp.
  • LCD with backlight & bar graph and clamp lighting bulb.
  • Relative value measurement and auto range function.
  • Provided with one excellent cloth bag for conveniently-carrying.
  • Data holding, to hold the readings while taking measurement.
  • Maximum and minimum value measuring and holding.
  • Automatic indication of functions and unit symbols.
  • Auto power off and low battery indication.
  • Full overload protection and dual insulation protection.
  • Over-moulding rubber case, shake-proof, skid-proof and good touch-feeling.
Documents:

Mastech MS2108 Clamp Multimeter Data Sheet.pdf

Display Specification

Display LCD

POWER

AC Voltage 660m / 6.6 / 66 / 600V /- 1.0%

Summary

DC Voltage 660m / 6.6 / 66 / 600V /- 0.8%
DC Current 66A/600A /- 3.0%
AC Current 66A/600A /- 3.0%

Antenna

Capacitance 6.6 /66 /660 /6.6m /66mF /- 4.0%
Frequency 10 to 10kHz /- 2.0% (from test terminal)
10 to 1kHz /- 2.0% (from current clamp)

General Specification

Operating Temperature 0℃ to 40℃
Power 1.5V×3 AAA batteries
Resistance 660 / 6.6k / 66k /660k /6.6M /- 1.0%, 66M /- 2.0%
Storage temperature -10℃ to 50℃
Weight Approx. 340g
Dimension 208mm×78mm×35mm
