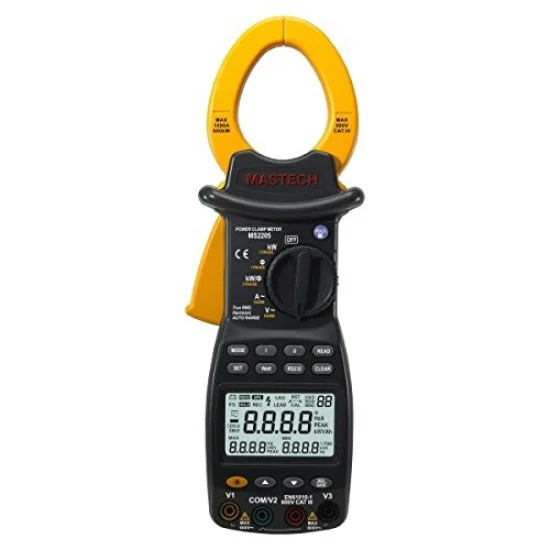

Mastech MS2205 Three Phase Digital Power Clamp Meter

The latest Mastech MS2205 Three Phase Digital Power Clamp Meter price in Pakistan is Rs. 32,500/- updated on October 20, 2026.

The Mastech MS2205 Three Phase Digital Power Clamp Meter is a clamp meter for measuring current without breaking the circuit.

Overview

The 3-phase clamp-type digital power meter is a hand-held intelligent harmonic power tester, with both functions of digital current testing and power testing. The tester is comprised of three channels including voltage, current, and power as well as a micro single-chip system. It also has powerful software for measurement and data processing functions.

It can measure, calculate, and display voltage, current, active power, power factor, apparent power, passive power, frequency, harmonic parameters, with stable performance and operation convenience. The meter is especially suitable for the measurement and examination of on-site power equipment and power-supplying circuits.

With a hand-held clamp structure, small volume, and lightweight, it can be easily carried by the user. Also, this makes it easy and fast for doing the measurement. In addition, for measurement of sing-phase / three-phase power, The meter is your ideal choice.

Features

• Complies with IEC/EN 61010-1 1000V CAT II,600 V CAT III
• Max. common-mode voltage: 600V AC RMS
• Mode of display: LCD display; Max. reading: 6000
• Range selection: Fully automatic range selection
• Frequency detection: automatic (when harmonic is serious, it is better to use manual settings for testing frequency so as to assure the reading stability)
• Over-range display: “OL”
• Data holding: “HOLD” is shown on LCD
• Electromagnetic compatibility: In an RF field of 3V/M, accuracy=specified accuracy, Otherwise accuracy is unspecifieced.
• Auto Ranging
• Auto Power Off
• True Root Mean Square Measurement
• Data Hold
• Display Backlight
• Low Battery Display

Documents:

Mastech MS2205 Three Phase Digital Power Clamp Meter Data Sheet.pdf

In addition, our team can help you choose the right model before you order.
