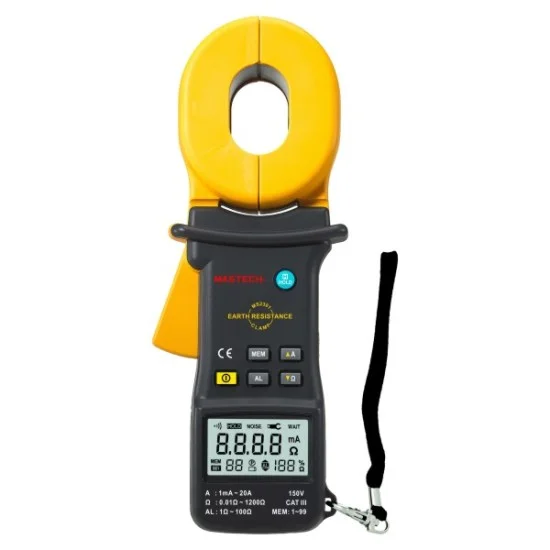

Mastech MS2301 Earth Resistance Clamp Meter


62,000.00

The latest Mastech MS2301 Earth Resistance Clamp Meter price in Pakistan is Rs. 62,000/- updated on June 22, 2026.

OVERVIEW:

  • Clamp shape Earth Resistance Meter, get Ground resistance result safely and easily by clamping the ground line.

Features:

  • Display 9999 counts
  • Jaw Opening 45mmx32mm/1.8’x1.3′
  • Auto & Manual Ranging
  • Logging and Recall 99 groups
  • Setting Alarm Threshold in 1~100Ω
  • Low Battery Display
  • Buzzer ON Symbol
  • Data Hold
Documents:

Mastech MS2301 Earth Resistance Clamp Meter Data Sheet.pdf

Display Specification

Display LCD 4 digit, 9999

Summary

Conductor size Φ32mm OR 45mm x 32mm
Test Voltage 3700V

TECHNICAL SPECIFICATION

Storage temperature -20℃ to 60℃ (-4℉ to 140℉)

General Specification

Current 100mA 0.1mA +-(3.5%+1)
300mA 0.3mA +-(3.5%+2)
1A 0.001A +-(3.5%+0.003)
3A 0.003A +-(3.5%+0.01)
10A 0.01A +-(3.5%+0.03)
20A 0.03A +-(3.5%+0.05)
Electric shock IEC1010-1
Operating Temperature -10℃ to 50℃ (14℉ to 122℉)
Resistance 0.01Ω~0.999Ω 0.001Ω +-(1.5%+0.01)
1Ω~9.99Ω 0.01Ω +-(1.5%+0.3)
10Ω~99.9Ω 0.1Ω +-(3.0%+0.3)
100Ω~199.9Ω 1Ω +-(5.0%+3)
200Ω~400Ω 5Ω +-(6.0%+5)
400Ω~600Ω 10Ω +-(10%+10)
600Ω~1200Ω 20Ω +-(20%+20)
Weight 1050g
Dimensions 54mm x 104mm x 32mm
Power Supply Ni-MH 600mAh 12Vx6 AAA
