The latest Mastech MS7221 Voltage/mA Calibrator price in Pakistan is Rs. 52,500/- updated on June 22, 2026.
OVERVIEW:

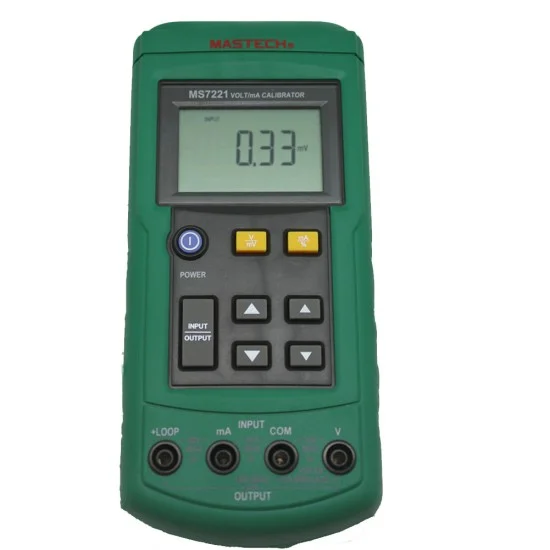

- MASTECH MS7221 Volt / mA Calibrator is a source and measurement tool. This calibrator can be used in measurement output 0 to 24 mA DC current loop, and 0 to 10V DC voltage. But the calibrator cannot be used to measurement and source simultaneously.
Features:
- Measure loop current signals with very high accuracy and 0.001 mA resolution
- Source or simulate 24 mA loop current
- Measure voltage output process signals from PLCs, transmitters
- Source voltage to 10V
- 24V loop supply with simultaneous current measurement
Documents:
Summary
| DC V mV Input | 0~100mV 0.01mV 0~10V 0.001V |
| DC V mV Output | 0~100mV 0.01mV 0~10V 0.001V |
| Loop Power Output | 24V DC N/A |
| DC mA Input | 0~24 mA 0.001mA |
| DC mA Output | 0~24 mA 0.001mA |
| DC V Input and Output | 100mV 0.01mV +-(0.02%+2) 10V 0.001V +-(0.02%+2) |
| DC mA Input and Output | 24mA 0.001mA +-(0.015%+4) |
| Loop Power | 24V +-10% |
