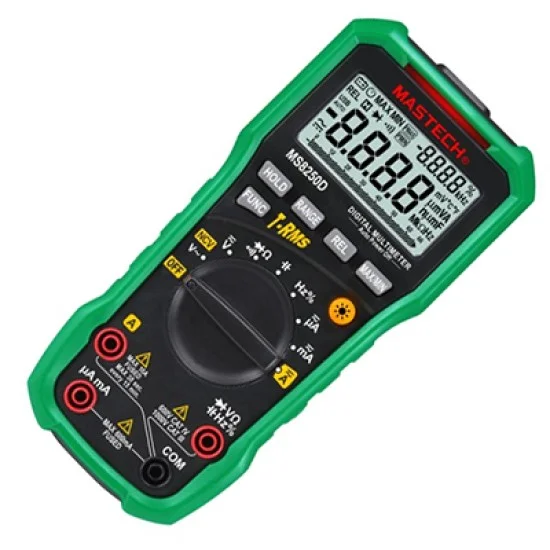

The latest Mastech MS8250D Multi meter price in Pakistan is Rs. 16,500/- updated on June 24, 2026.
FEATURES:
- Unit display: functions and unit power
- Auto power off time: approx.15 min.
- Power Supply: 9V Battery
- Low Battery Indication: displays shows ‘ ‘
- Temperature coefficient: less than 0.1 x accuracy/℃
- Operating temperature: 0℃ to 40℃
- Storage temperature: -10℃ to 50℃
- Dimension: 180x86x52mm
- Weight: about 250g (without battery)
- Display: 6600 counts
- Auto Ranging
- Manual Ranging
- Auto Power Off
- Relative Measurement
- True Root Mean Square
- Non-Contact Voltage Detection
- Diode: 3.2V
- Continuity Buzzer: <50Ω
- MAX/MIN
- Bar Graph
- Data hold
- Low Battery Display
- Display Backlight
- USB Interface: Windows OS
- Auto range and manual range.
- Full range overload protection
- Max. voltage between terminal and ground:
- CAT IV, 600V DC, or AC RMS.
- CAT III, 1000V DC, or AC RMS.
- Operational altitude: 2000 m max.
- Display: LCD
- Displayed maximum value: 6599
- Polarity Indication: Automatically display ‘ – ‘
- Over range indication: ‘OL ‘ or ‘-OL’
- Sampling rate: approx. 0.4s/analog bar graph: approx.0.04s except for current measurement: approx. 1s/bar graph: 0.1s
Summary
| DC Voltage | 660mV +-(0.8%+3) 6.6V/66V/660V/1000V +-(0.5%+5) |
| AC Voltage | 660mV +-(1.5%+5) 6.6V/66V +-(1.2%+5) 660V/1000V +-(1.0%+3) |
| Capacitance | 6.6nF +-(4.0%+5) 66/660nF/6.6/66/660µF +-(3.0%+3) 6.6mF/66mF +-(4.0%+5) |
| DC Current | 660µA/6600µA/66mA/660mA +-(1.0%+5) 10A +-(2.0%+5) |
| Resistance | 660Ω/6.6/66/660KΩ/6.6MΩ +-(0.8%+5) 66MΩ +-(1.5%+5) |
| AC Current | 660µA/6600µA/66mA/660mA +-(1.5%+5) 10A +-(3.0%+5) |
| Frequency | 66Hz/660Hz/6.6kHz/66kHz/660kHz/6.6MHz/66MHz +-(1.5%+5) |
| Duty Cycle | 0.1%~99.9% +-(2%+2) |
