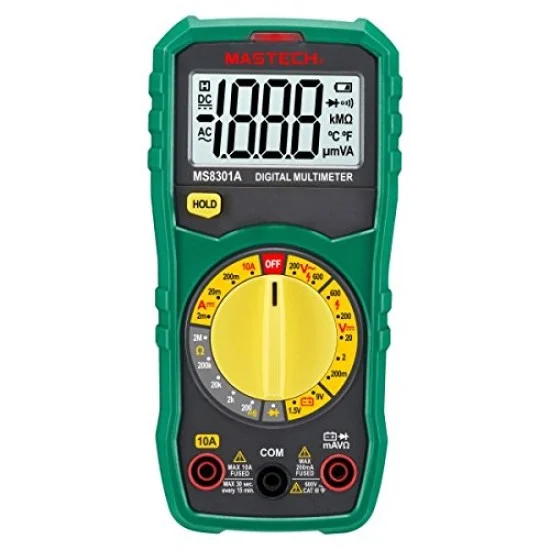

Mastech MS8301A Digital Multimeter
₨3,000.00
The latest Mastech MS8301A Digital Multimeter price in Pakistan is Rs. 3,000/- updated on August 30, 2026.
OVERVIEW:
- The instrument of this series is a small hand-held 3 1/2 digital multimeter. Stable, highly reliable and anti-drop performance. It is provided with a LCD display of 15 mm height for clear reading. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit, making it a superior and handy instrument. It can be used to measure DC and AC voltage, DC current, resistance, battery voltage, diodes and forin-circuit continuity test.
Features:
- Operating environment and condition: 600V CAT III, pollution grade: II.
- Elevation 28℃)
- The maximum allowable voltage between measurement end and ground: 600V DC or 600V AC RMS
Fuse Protection:
- grade mA: FF400mA H 600V 10KA
- grade 10A: FF 10A H 600V 10KA
- Data hold
- Low Battery Display
Display Specification
| Display | 2000 counts |
Summary
| Continuity buzzer | <50Ω |
| Low battery indication | When battery voltage is lower than the normal operating voltage, will shown on the LCD display. |
TECHNICAL SPECIFICATION
| Sampling Rate | about 3 times/s |
General Specification
| AC voltage Accuracy | +-(1.0%+10) +-(1.2%+10) |
| AC voltage range | 200V 600V |
| DC Current Accuracy | +-(1.0%+3) +-(1.0%+5) +-(1.5%+2) +-(3.0%+10) |
| DC Current Range | 2mA 20mA 200mA 10A |
| DC voltage Accuracy | +-(0.5%+3) +-(0.8%+5) |
| DC voltage Range | 200mV/2V/20V/200V 600V |
| Diode | 2.7V |
| Over-range indication | LCD will show ‘OL’ |
| Resistance | 200Ω 2KΩ/20KΩ/200KΩ 2MΩ |
| Weight | 220g |
| Power Supply | AAA1.5Vx2 batteries. |
| Dimension | 150mmx74mmx45mm |
