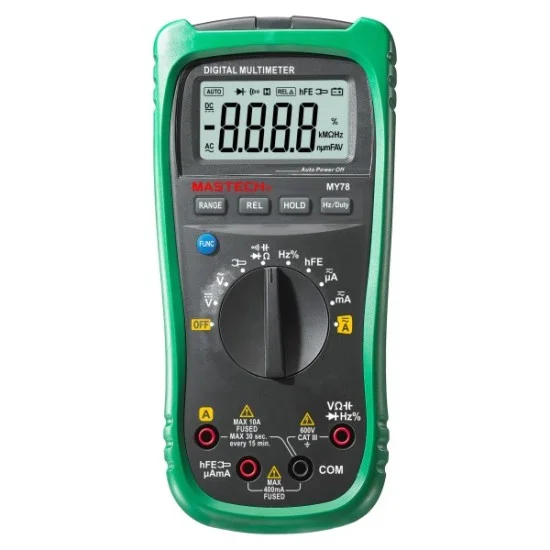

Mastech MY-78 Digital Multimeter
₨7,500.00
The latest Mastech MY-78 Digital Multimeter price in Pakistan is Rs. 7,500/- updated on June 24, 2026.
FEATURE:
- Safety Rating: 600V CAT II
- Pollution Degree: 2
- Operating Altitude: 28℃)
- Max. Input between terminal and earth ground: 600V DC or AC rms
- Fuse Protection: F1 400mA/250V ; F2 10A/250V
- Sample Rate: Approx. 3 times/sec.
- Display: 3 1/2 digit LCD display, max. reading:3999.
- Over-range Indication: display shows ‘ OL ‘
- Low Battery Indication: When battery voltage drop below the normal operating voltage ‘ ‘ will appear on the display.
- Polarity Indication: Display automatically display ‘ – ‘
- Power: 1x9V battery NEDA 1604 or 6F22
- Dimension(LxWxH): 189x91x31.5mm
- Weight: approx. 420g (including battery)
- Display: 4000 counts
- Autoranging
- Auto Power off
- Relative Measurement
- Transistor hFE: 0~1000
- Diode: 1.5V
- Continuity Buzzer: <60Ω
- Data Hold
- Low Battery Display
Summary
| DC Voltage | 400mV/4V/40V/400V +-(0.7%+2) 600V +-(0.8%+2) |
| AC Voltage | 400mV +-(3.0%+3) 4V/40V/400V +-(0.8%+3) 600V +-(1.2%+3) |
| Capacitance | 4nF +-(4.0%+25) 40nF/400nF/4µF/40µF/200µF +-(4.0%+15) |
| DC Current | 400µA/4mA/40mA/400mA +-(1.2%+3) 10A +-(2.0%+5) |
| Resistance | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ +-(1.2%+2) 40MΩ +-(2.0%+5) |
| AC Current | 400µA/4mA/40mA/400mA +-(1.5%+5) 10A +-(3.0%+7) |
| Frequency | 20kHz +-(2.0%+5) >200kHz Take in only as reference |
| Duty Cycle | 5%~95% +-(2.0%+2) |
| DC Current (for Clamp Meter) | 40A +-(0.8%+3) 400A +-(0.8%+3) |
| AC Current (for Clamp Meter) | 40A +-(1.0%+3) 400A +-(1.0%+3) |
