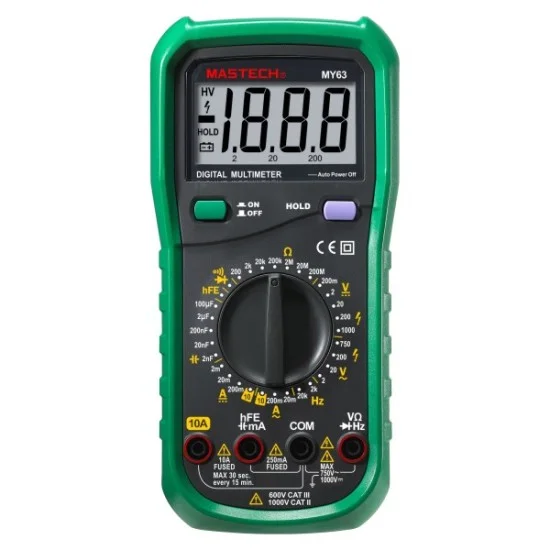

Mastech MY63 Handheld Digital Multimeter DMM
₨7,000.00
The latest Mastech MY63 Handheld Digital Multimeter DMM price in Pakistan is Rs. 7,000/- updated on June 24, 2026.
FEATURES:
- Display: 2000 counts
- Auto Power Off
- Transistor hFE: 0~1000
- Diode: 2.8V
- Continuity Buzzer: <50Ω
- Data Hold
- Low Battery Display
Documents:
Display Specification
| Display | 3 1/2 digit LCD display, Automatically display unit symbols is in accordance with measurement function grade. |
Summary
| DC Voltage | 200mV/2V/20V/200V +-(0.5%+2) 1000V +-(0.8%+2) |
| AC Voltage | 2V/20V/200V +-(0.8%+3) 750V +-(1.2%+3) |
| Capacitance | 2nF/20nF/200nF/2µF +-(4.0%+3) 100µF +-(6.0%+10) |
| DC Current | 2mA/20mA +-(0.8%+1) 200mA +-(1.5%+1) 10A +-(2.0%+5) |
| Resistance | 200Ω +-(0.8%+3) 2KΩ/20KΩ/200KΩ/2MΩ +-(0.8%+2) 20MΩ +-(1.0%+2) 200MΩ +-(6.0%+10) |
| AC Current | 20mA +-(1.0%+5) 200mA +-(1.8%+5) 10A +-(3.0%+7) |
TECHNICAL SPECIFICATION
| Low Battery Indication | When the battery voltage is lower than the normal operating voltage, ” will display on the LCD display. |
| Over Range Indication | LCD will show ‘1’ |
General Specification
| Battery Type | NEDA 1604, 6F22 or 006P. |
| weight | about 380g (include battery) |
| Power Supply | DC 9V |
| Dimension | 188mm(L)*93mm(W)*50mm(H). |
