The latest KNOX POWERWALL 3.1 LITHIUM-ION BATTERY price in Pakistan is Rs. 140,000/- updated on June 1, 2026.
Smart Features
-
Advanced Battery Management System (BMS) with:
-
Over-voltage, low-voltage, overcurrent, overheating, and short-circuit protection
-
-
Scalability: Connect up to 8 units in parallel (no series support)
-
Certifications: IEC62619, UL1793, UL9540A, CE, ROHS, UN38.3, MSDS
Performance Highlights
-
Max Charge/Discharge Current: 100A continuous, 120A peak
-
Charge Voltage Range: 27.6V – 28.8V
-
End-of-Discharge Voltage: 24V
-
Operating Temperature:
-
Charge: 0°C to +55°C
-
Discharge: -20°C to +55°C
-
DOCUMENTATION:

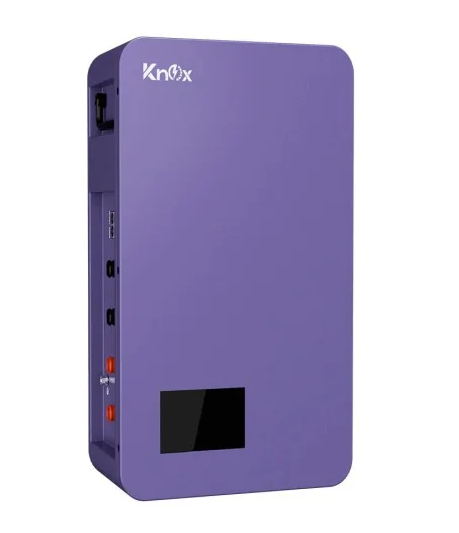

KNOX POWERWALL 3.1 LITHIUM-ION BATTERY - 25.6V 100AH IP20
The latest KNOX POWERWALL 3.1 LITHIUM-ION BATTERY price in Pakistan is Rs. 140,000/- updated on June 1, 2026.
1. DISPLAY & TECHNICAL SPECIFICATIONS
| Feature | Specification |
| Display | 4.3″ HMI Touch LCD for real-time monitoring and inverter protocol adjustment |
| Communication Port | RS485 & CAN (inverter), LINK-IN & LINK-OUT (battery) |
| Nominal Voltage | 25.6V |
| Capacity | 100Ah (2.56kWh total energy) |
2. GENERAL & MECHANICAL SPECIFICATIONS
| Feature | Specification |
| Battery Type | $\text{LiFePO}_4$ (Lithium Iron Phosphate) |
| Cycle Life | 6000+ cycles @ 80% DoD |
| Mounting Type | Wall-mounted (IP20-rated metal housing) |
| Weight | 28 kg |
| Dimensions | $395 \times 470 \times 160\text{ mm}$ |
3. PERFORMANCE HIGHLIGHTS
| Feature | Specification |
| Max Charge/Discharge Current | 100A continuous, 120A peak |
| Charge Voltage Range | 27.6V – 28.8V |
| End-of-Discharge Voltage | 24V |
| Operating Temp (Charge) | 0°C to +55°C |
| Operating Temp (Discharge) | -20°C to +55°C |
4. SMART FEATURES & CERTIFICATIONS
-
Advanced Battery Management System (BMS): * Over-voltage, low-voltage, overcurrent, overheating, and short-circuit protection.
-
Scalability: Connect up to 8 units in parallel (no series support).
-
Certifications: IEC62619, UL1793, UL9540A, CE, ROHS, UN38.3, MSDS.
