Analog Multimeters, Industrial Meter

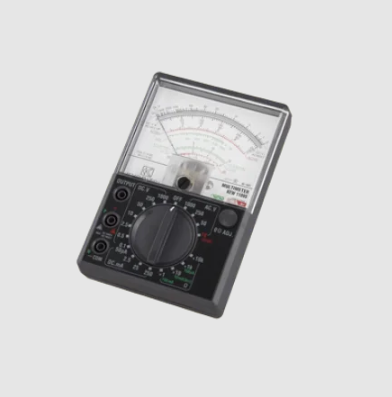

KYORITSU KEW 1109S Analogue Multimeter
| Summary | |
| DC A | 50µA/2.5/25/250mA ±3% of FS |
| DC Voltage | 0.1/0.5/2.5/10/50/250/1000V ±3% of FS (20kΩ/V) |
| Decibel | -10 – +62dB |
| hFE | 0 – 1000 (Ω × 10) ±3% of scale length |
| Included Accessories | 7066A (Test leads) 8901 (Fuse [0.5A/250V]) × 2 R6 (AA) × 2 6F22 × 1 Instruction Manual |
| Optional Accessories | 9168 (Carrying Case) |
| AC Voltage | 10/50/250/1000V (9kΩ/V) ±3% of FS |
| Weight | 330g approx. |
| Power Source | R6 (AA) (1.5V) × 2 6F22 (9V) × 1 |
| Ohms | 2/20kΩ/2/20MΩ ±3% of scale length |
| General Specification | |
| Dimensions | 150(L) × 100(W) × 47(D)mm |
₨9,500.00
The latest KYORITSU KEW 1109S Analogue Multimeter price in Pakistan is Rs. 9,500/- updated on June 1, 2026.
FEATURES:
- Mirrored scale for easy and accurate reading.
- Output terminal to cut off DC component when measuring the AC voltage.
- Safety designed input terminals and test leads.
The latest KYORITSU KEW 1109S Analogue Multimeter price in Pakistan is Rs. 9,500/- updated on June 1, 2026.
