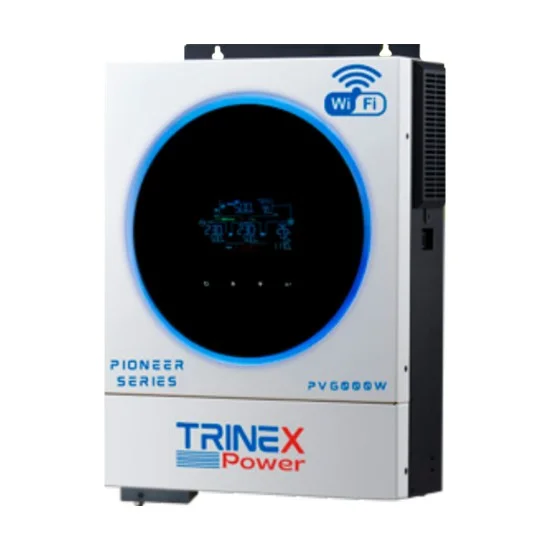

Trinex Power VM IV-6000 TWIN Hybrid Solar Inverter
,

Trinex Power VM IV-6000 TWIN Hybrid Solar Inverter

Compare

₨128,500.00

The latest Trinex Power VM IV-6000 TWIN Hybrid Solar Inverter price in Pakistan is Rs. 128,500/- updated on June 17, 2026.

Product Details:
The Trinex Power VM IV-6000 TWIN Hybrid Solar Inverter is a versatile and efficient solution for off-grid and hybrid solar energy systems. It is designed to manage dual AC outputs, making it suitable for both residential and commercial applications.

Features:
Dual output for smart load management
Maximum PV input current 27A
Wide PV input voltage range 60VDC~450VDC
Customizable status LED ring with RGB lights
Touchable button with large 4.3′ colored LCD
Built-in Wi for mobile monitoring (Android/iOS APP available)
Supports USB On-the-Go function
Data log event stored in the inverter
Reserved communication port (RS485, CAN-BUS or RS232) for BMS
Battery independent design
Battery equalization extends lifecycle
Enhanced charging power
Built-in anti-dust kit

POWER

Charge Voltage 54 VDC

Summary

communication interface USB/RS232/RS485/WiFi/Dry-contact
Voltage range 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Operating Voltage 60 ~ 450 VDC

HARDWARE FEATURES

Battery Voltage 48 VDC
Efficiency 90% ~ 93%
Input Current 27A

Output

Transfer Time 10 ms (For Personal Computers)
20 ms (For Home Appliances)

TECHNICAL SPECIFICATION

Array Power 6000W
Rated Power 6000VA/6000W
Surge Power 12000VA

General Specification

AC Voltage 230VAC ± 10%
Charger Type MPPT
Circuit voltage 500 VDC
Frequency Range 50 Hz/60 Hz (Auto sensing)
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Overcharge Protection 63 VDC
Voltage 230 VAC
Waveform Pure sine wave
Weight 12 kg
Dimension 119 x 313.6 x 457.5
