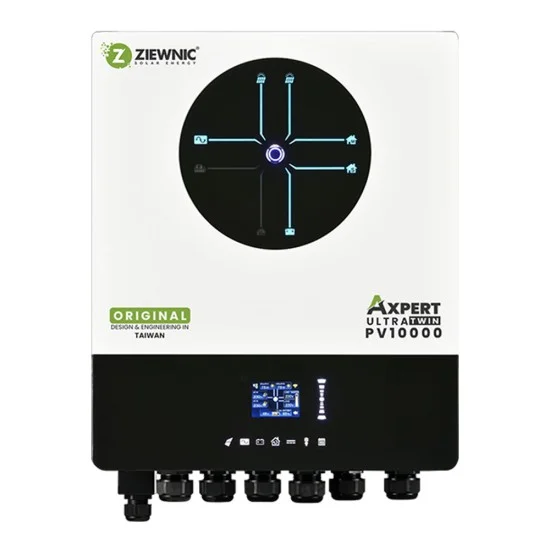

Ziewnic Axpert Ultra twin Parallel 8kW PV10000 Hybrid Solar Inverter
₨255,000.00
The latest Ziewnic Axpert Ultra twin Parallel 8kW PV10000 Hybrid Solar Inverter price in Pakistan is Rs. 255,000/- updated on June 19, 2026.
Product Details:
The Ziewnic Axpert Ultra Twin 8kW (PV10000) is a high-performance hybrid solar inverter designed for residential and commercial applications. It integrates solar energy conversion, battery storage, and grid interaction into a single unit, providing reliable and efficient power management.
Features:
INTRODUCING ORIGNAL DESIGN AND ENGINEERING IN TAIWAN
TWO INDEPENDENT AC POWER SOURCES CONNECTED AND SWITCHED AUTOMATICALLY
MAXIMUM CHARGING CURRENT 150A
SUPPORTS USB ON-THE-GO FUNCTION
RESERVED COMMUNICATION PORT FOR BMS (Rs. 485, CAN-BUS OR Rs. 232)
BUILT-IN FEED-IN GRID FUNCTION
BUILT-IN 2.8″ COLORED LCD WITH SLIDE OPERATION
BUILT-IN POWER STATUS LIGHTING INDICATORS
SUPPORT EXTERNAL BTS (BATTERY TEMPERATURE SENSOR) DETECTION
BUILT-IN WIFI WITH APP FOR REMOTE MONITORING AND OTA FIRMWARE UPGRADE
ADAPTABLE TO MAIN VOLTAGE / GENERATOR POWER
CONFORMAL COATING TO PREVENT FROM DUST AND HUMIDITY
Documents:
Ziewnic Axpert Ultra twin Parallel 8kW PV10000 Hybrid Solar Inverter Data Sheet.pdf
POWER
| Charge Voltage | 54VDC |
Summary
| communication interface | USB/Rs. 232/Rs. 484/WiFi/Dry-Contact/BTS Support optional GFCI, Rapid Shutdown, AFCI detection |
| Voltage range | 170 – 280 VAC (For Personal Computer) |
HARDWARE FEATURES
| Battery Voltage | 48 VDC |
| Efficiency | 93% |
Output
| Transfer Time | 10ms (Personal Computer) ; 20 ms ( For Home Appliances) |
TECHNICAL SPECIFICATION
| Rated Power | 11000VA/11000W |
| Surge Power | 22000VA |
General Specification
| Frequency Range | 90 – 280 VAC (For Home Appliances) |
| Overcharge Protection | 63VDC |
| Parallel Capability | YES, 6 units |
| Voltage | 230 VAC |
| Waveform | Pure Sine Wave |
| Weight | 18.4 kgs |
| Dimension | 145 x 438 x 553.6 mm |
