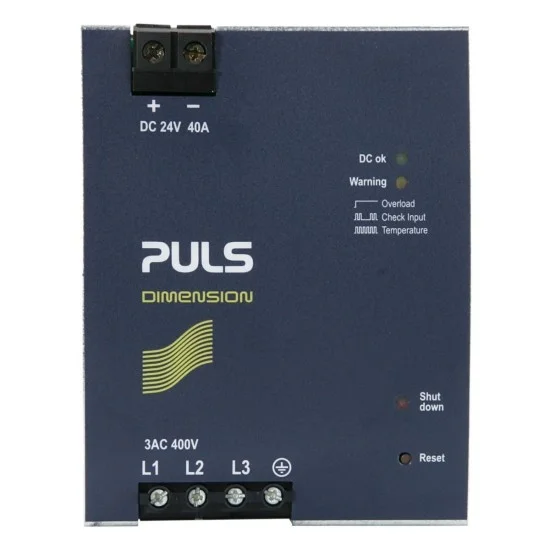

Puls Dimension XT40.241 DIN-Rail Power Supply 24V, 40A

The latest Puls Dimension XT40.241 DIN-Rail Power Supply 24V, 40A price in Pakistan is Rs. 120,000/- updated on October 19, 2026.

You can buy the Puls Dimension XT40.241 DIN-Rail Power Supply 24V, 40A online at Roshanex in Pakistan.

OVERVIEW:

• The power supplies in the Dimension X-Series include a new and innovative concept for generating an isolated DC voltage from a three-phase mains system.
• A semi-regulated resonant converter enables a very compact design, maximum efficiency, and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple, and hold-up time.
• Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25% power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail.
• Primary use is applications involving supplies to motors, valves, and other load circuits with high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required.
• Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.

Features:

• Alternative or Replacement for AC Transformer
• Three Phase Input – DC Output
• DIN-Rail Mountable
• Width only 96mm
• 95.5% Efficiency
• 125% Peak Power Capability
• No Input Inrush Current
• Active Input Transient Blocker
• Full Power Between -25°C and +60°C
• Easy Failure Diagnostics
• No Electrolytic Capacitors on Input Side
• Cost-Effective and Robust

Documents:

Puls Dimension XT40.241 DIN-Rail Power Supply 24V, 40A Data Sheet.pdf
