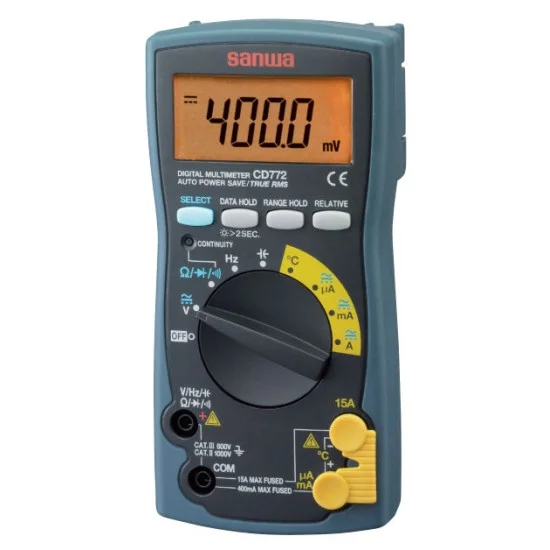

Sanwa CD772 (Standard type TRUE RMS) Digital Multimeter

The latest Sanwa CD772 (Standard type TRUE RMS) Digital Multimeter price in Pakistan is Rs. 57,000/- updated on August 30, 2026.

OVERVIEW:

• 3-3/4 digits 4000 count
• AC True RMS
• Easy to read large LCD with Backlight
• Large breaking capacity fuse 30kA
• K-type thermocouple temperature measurement -20℃〜300℃
• Thermoplastic elastomer, high resistance against drop shock
• Safety cap on the current terminal
• Data hold, Range hold, Relative function
• Continuity check, Diode test
• Auto power-off function (30min.)
• Maximum 20A can be measured if the measurement time is less than 10 seconds. (Take 10 minutes or longer intervals between measurements)
• Display: numeral display 4000
• Sampling rate : 3 times / sec.
• AC frequency bandwidth : 45~500Hz (4V range), 45~1KHz (40V range and above)

Documents:

Sanwa CD772 (Standard type TRUE RMS) Digital Multimeter Data Sheet.pdf
