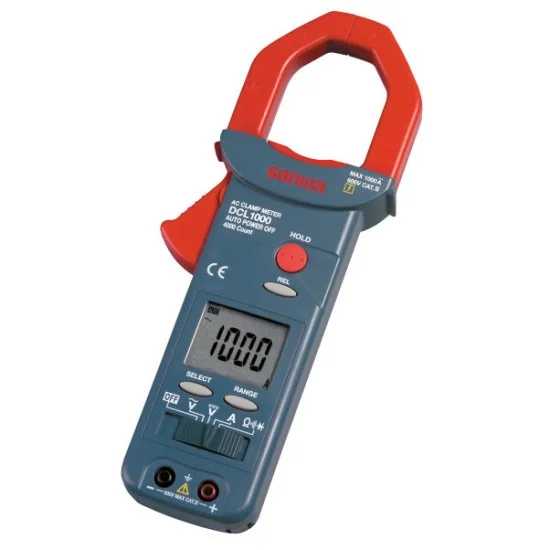

Sanwa DCL1000 Clamp Meters / AC
₨22,000.00
The latest Sanwa DCL1000 Clamp Meters / AC price in Pakistan is Rs. 22,000/- updated on June 25, 2026.
OVERVIEW:
- This instrument is an AC clamp meter/digital multimeter, designed for measurements in the range specified by IEC61010-2-032 CAT.III 600V. It is suitable for current and voltage measurements of low-voltage circuitry, electric equipment, and power supply facilities.
Features:
- AC current measurable max. 1000A & DMM function
- Large LCD
- Data hold
- Range hold
- Relative value
- Auto power save(30min.)(No cancelable)
- Lightweight approx. 290g
Documents:
Display Specification
| Display | 4000 count |
POWER
| AC Current | 400/1000A |
| AC Voltage | 400m/4/40/400/600V |
| DC Voltage | 400m/4/40/400/600V |
Summary
| Diode test | Open voltage: approx. 1.6V |
| Range Selection | Auto and Manual |
| Power Consumption | 2.2mA at DCV(typical) |
| Continuity | Buzzer sounds at between 0Ω and 65Ω. Open voltage: approx. 0.4V |
| Size | H238 x W95 x D45mm |
TECHNICAL SPECIFICATION
| Sampling Rate | Approx. 3 times / sec |
General Specification
| Battery | R03 x 2 |
| Operating Temperature | Temperature 5℃~40℃ |
| Resistance | 400/4k/40k/400k/4M/40MΩ |
| Weight | 290g |
