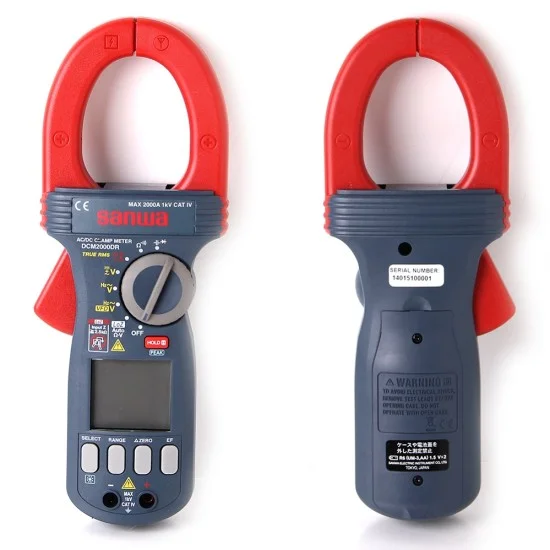

Sanwa DCM2000DR Clamp Meter
₨60,000.00
The latest Sanwa DCM2000DR Clamp Meter price in Pakistan is Rs. 60,000/- updated on August 31, 2026.
OVERVIEW:
- Dual display shows voltage/current and its frequency
- True RMS
- EF (Electric Field) sensing
- VFD (Variable Frequency Drive) frequency measurement
- Low input impedance voltage measurement capable of attenuating the effects of ghost voltage.
- Data hold, Range hold
- Relative value
- Peak hold (5msec.)
- Auto Power Save (30min.) (cancelable)
- Sampling rate: approx. 5 times / sec
Documents:
Display Specification
| Display | Numeral Display 6000 |
POWER
| AC Current | 200/2000A |
| AC Voltage | 6/60/600/1000V |
| DC Voltage | 6/60/600/1000V |
Summary
| Bandwidth | 50~400Hz |
| Diode test | Open voltage: approx. 1.8V |
| Range Selection | Auto, Manual |
| DC Current | 200/2000A |
| Power Consumption | Approx. 14mA TYP(when measuring current) Approx. 5mA TYP(functions other than current) |
| Continuity | Buzzer beeps at below the threshold (10 to 200 Ω). Open voltage: approx. 0.5V |
| Battery Life | Approx. 80 hours |
| Size | H264 x W97 x D43mm |
Antenna
| Capacitance | 60n/600n/6μ/60μ/600μ/2000μF |
| Frequency | 10~1999Hz |
TECHNICAL SPECIFICATION
| Sampling Rate | Approx. 5 times / sec |
General Specification
| Product Type | Clamp Meters |
| Resistance | 600/6k/60k/600k/6M/40MΩ |
| Weight | 640g |
