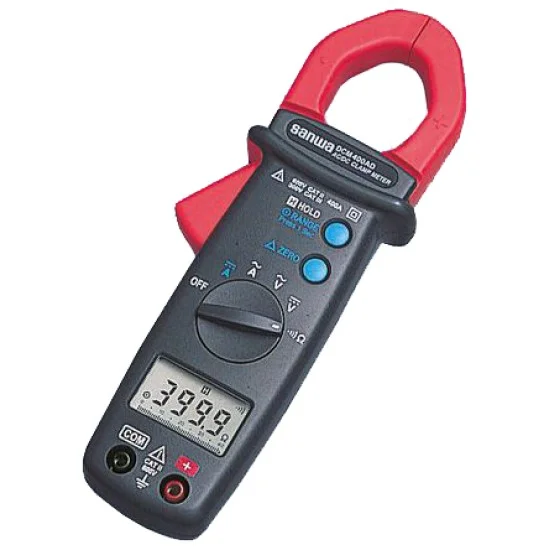

Sanwa DCM400AD Clamp Meter
₨30,000.00
The latest Sanwa DCM400AD Clamp Meter price in Pakistan is Rs. 30,000/- updated on June 25, 2026.
OVERVIEW:
- 4000 count / 42 segment analog bar graph
- DC / AC current 40A/400A
- Data hold / Range hold
- Relative value
- Continuity check buzzer
- Auto power off (30min.)
- Low battery power indication
- Display: numeral display 3999, bar graph 42 segments
- Sampling rate : 2 times / sec. 20 times / sec. for the bar graph
- AC frequency bandwidth: 50〜500Hz
Documents:
Display Specification
| Display | 3999 count |
POWER
| AC Current | 40/400A |
| AC Voltage | 400/600V |
| DC Voltage | 400/600V |
Summary
| Bandwidth | 50~500Hz(ACV : 1.5%±5) |
| DC Current | 40/400A |
| Continuity | Buzzer sounds at less than approx. 40Ω, Open voltage : approx. 1.5V |
| Size | H193 x W50 x D28mm |
TECHNICAL SPECIFICATION
| AC Frequency | 50〜500Hz |
| Sampling Rate | 2 times / sec |
| Storage temperature | -10℃~60℃, below 70%RH No condensation |
General Specification
| Operating Temperature And Humidity | 0℃~40℃, below 80%RH No condensation |
| Power Consumption | Approx. 7.4 mW |
| Product Type | Clamp Meters Ac/Dc |
| Resistance | 400Ω |
| Weight | 230g |
