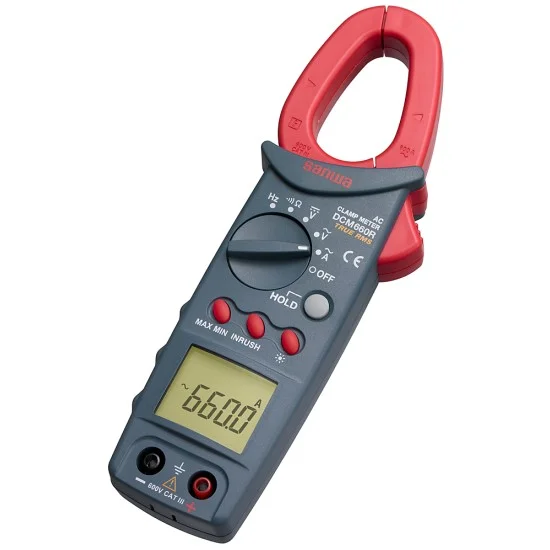

Sanwa DCM660R Clamp Meter
₨21,670.00
The latest Sanwa DCM660R Clamp Meter price in Pakistan is Rs. 21,670/- updated on June 25, 2026.
OVERVIEW:
- AC current measurable max. 660A
- True RMS
- Inrush current measurement
- Max/Min value hold
- Frequency measurement by clamping and using test lead
- Data hold, Auto power save
- LCD with backlight
- Sampling rate: 3 times / sec. for numeral display
Documents:
Display Specification
| Display | Numerical Display 6600 |
POWER
| AC Current | 66/660A |
| AC Voltage | 600V |
| DC Voltage | 600V |
Summary
| Continuity | Buzzer sounds at less than 30Ω. Open voltage : approx. 1.2V |
| Battery Life | approx 55 hours |
| Size | H208 x W69 x D38mm |
HARDWARE FEATURES
| Capacitance Measurement | 660A |
| Power Consumption | approx 50mW TYP |
TECHNICAL SPECIFICATION
| Sampling Rate | Approx. 3 times / sec |
General Specification
| AC measuring method | True RMS |
| Operation method | Double integration |
| Product Type | Clamp Meters/AC+True RMS |
| Resistance | 660Ω |
| Weight | 265g |
