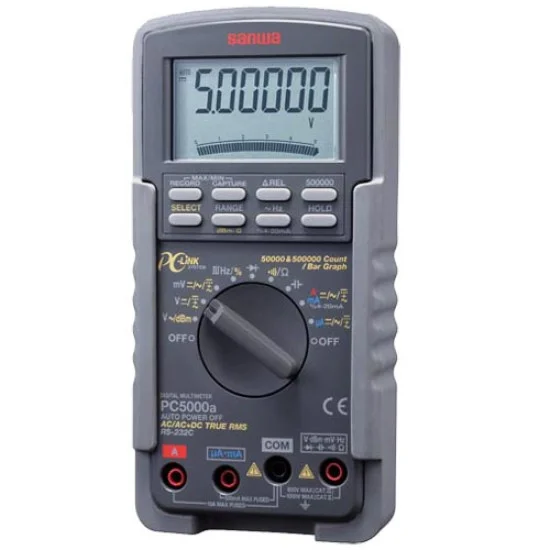

Sanwa PC5000A Digital Multimeter

The latest Sanwa PC5000A Digital Multimeter price in Pakistan is Rs. 34,550/- updated on June 24, 2026.

OVERVIEW:

• 0.03% Basic Accuracy
• AC / AC + DC True RMS
• 50000 & 500000 count (DCV & Hz range) selectable
• Selectable 5 sensitivity for Hz
• 0.01 ohm resolution
• 0.01m V AC/DC resolution
• Line, Logic Frequency measurement
• Frequency 0.0001Hz resolution
• dBm 20 selectable reference impedance
• 4 – 20mA % measurement

Specification:

• DMM Type: Handheld
• Voltage Measuring Range DC: 500mV to 1kV
• Voltage Measuring Range AC: 500mV to 1kV
• Current Measuring Range DC: 500µA to 10A
• Current Measuring Range AC: 500µA to 10A
• Resistance Measuring Range: 500ohm to 50Mohm
• Frequency Measuring Range: 5Hz to 200kHz
• Capacitance Measuring Range: 50nF to 9.999mF
• No. of Digits / Alpha: 6
• DMM Response Type: True RMS
• DMM Functions: AC/DC Current, AC/DC Voltage, Capacitance, Frequency, Resistance
• Ranging: Auto
• Display Count: 500000
• Current Range AC: 500µA to 10A
• Current Range DC: 500µA to 10A
• DC Voltage Range Accuracy1: 0.03%
• Duty Cycle (%): 99%
• Interface Type: Rs. 232 (USB opt.)
• Operating Current AC: 10A
• Operating Current DC: 10A
• Supply Voltage V DC: 9V
• Voltage Rating V AC: 1000V
• Voltage Rating V DC: 1000V

Documents:

Sanwa PC5000A Digital Multimeter Data Sheet.pdf
