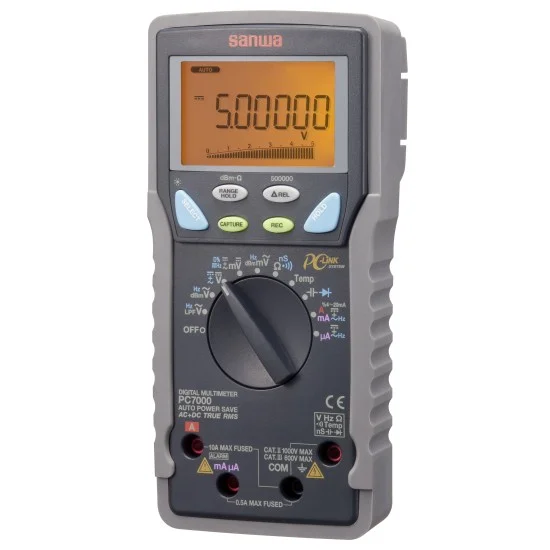

Sanwa PC7000 Digital Multimeters / High accuracy / High resolution

The latest Sanwa PC7000 Digital Multimeters / High accuracy / High resolution price in Pakistan is Rs. 125,000/- updated on August 31, 2026.

OVERVIEW:

• 4-4 / 5digits 50000 count
• (Selectable 5-4 / 5 digits 500000 count for DCV)
• Dual Display shows voltage/current and its
• frequency, and AC components and DC
• components of voltage/current
• AC True RMS
• Low-pass filter for variable frequency drive(VFD) circuit
• Current (mA / μA) %4-20mA measurement
• Capture (peak hold) 0.8ms in duration
• MAX, MIN, AVE recording mode
• K type temperature -50℃〜1000℃
• Optional accessory K-AD is necessary.
• K type temp. sensor K-250PC is included as a standard accessory.
• Frequency measurement (AC sine wave only)
• Logic frequency measurement, duty cycle measurement
• Conductance measurement
• Dual display with backlight
• Relative value
• Auto power-saving mode (30min.) (cancelable)
• Optical Link USB interface (optional)
• Display : numeral display 50000 & 500000 selectable, bar graph 41 segments
• Sampling rate : 5 times/sec. for 50000 count, 1.25 times/sec. for 500000 count, 60 times/sec. for bar graph
• Battery life: Approx. 100h (alkaline battery) at DCV range

Documents:

Sanwa PC7000 Digital Multimeters / High accuracy / High resolution Data Sheet.pdf
