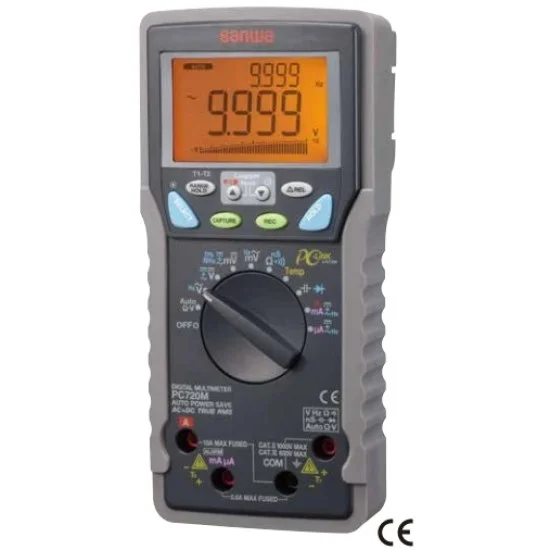

Sanwa PC720M Digital Multimeter / High Accuracy

The latest Sanwa PC720M Digital Multimeter / High Accuracy price in Pakistan is Rs. 58,000/- updated on June 25, 2026.

OVERVIEW:

• 4 digits 9999 count & 3-5/6 digits 6000 count
• AC True RMS
• Dual display with backlight
• Automatic measurement for ACV/DCV/Ω under low impedance
• High-speed bar graph
• Capacitance measurement
• Not suitable for measurement of condensers with large leak current
• K type temperature -50℃〜1000℃
• Optional accessory K-AD is necessary.
• K type temp. sensor K-250PC is included as a standard accessory.
• Frequency measurement (AC sine wave only
• Logic frequency measurement, duty cycle
• measurement
• Conductance measurement
• MAX, MIN, MAX-MIN recording mode
• Capture (peak hold) 1ms in duration
• Data hold, Range hold
• Relative value
• Auto power-saving mode (30min.) (cancelable)
• Optical Link USB interface (optional)
• Data Logging Mode
• 87,328 data points in the built-in memory
• (single display)
• 43,664 data points in the built-in memory
• (dual display)
• Selection of measurement interval
• 0.05s/0.1s/0.5s/1s/2s/3s/4s/5s/10s/15s/30s/
• 60s/120s/180s/300s/600s
• Auto-standby mode when a sampling speed
• the 30s or longer is selected
• Export logged data to PC
• Optional accessory PC Link7 is necessary.
• Display : numeral display 9999 & 6000, bar graph 41 segments
• Sampling rate : 5 times/sec., 60 times/sec. for bar graph Max.EN61326-1:2006
• Battery life : Approx. 100h (alkaline battery) at DCV range

Documents:

Sanwa PC720M Digital Multimeter / High Accuracy Data Sheet.pdf
