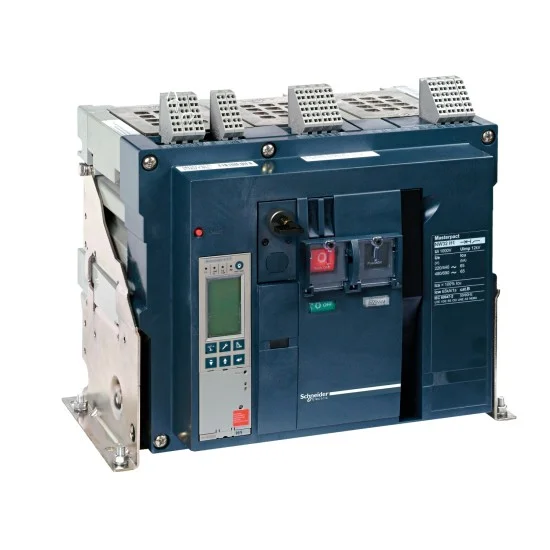

Schneider 48029 1250 A 3 Pole Air Circuit Breaker
₨ 360,000
The latest Schneider 48029 1250 A 3 Pole Air Circuit Breaker price in Pakistan is Rs. 360,000/- updated on October 28, 2026.
You can buy the Schneider 48029 1250 A 3 Pole Air Circuit Breaker online at Roshanex in Pakistan.
OVERVIEW:
Breaking Capacity:
- 65 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
- 65 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
- 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
- 65 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
- 65 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2
Electrical Durability:
- 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
- 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
- AC-23A: 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
- AC-23A: 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
- AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
Summary
| Ambient Air Temperature for Operation | -25…70°C |
| Ambient Air Temperature for Storage | -40…85°C |
| Height | 352 mm |
| Pollution Degree | 4 conforming to IEC 60664-1 |
| Rated Current | 1250 A at 40°C |
| Depth | 297 mm |
HARDWARE FEATURES
| Mounting Mode | Fixed |
| Network Type | AC |
| Number of Poles | 3P |
| Protection Type | Without protection |
| Standards | IEC 60947-2 |
TECHNICAL SPECIFICATION
| Rated Impulse Withstand Voltage | 12 kV conforming to IEC 60947-2 |
| Rated Insulation Voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated Operational Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated Service Breaking Capacity | 65 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated Short-Circuit Making Capacity | 143 kA 525 V AC at 50/60 Hz 143 kA 690 V AC at 50/60 Hz |
General Specification
| Control Type | Push-button |
| Mechanical Durability | 12500 cycles without maintenance conforming to IEC 60947-2 25000 cycles with maintenance conforming to IEC 60947-2 |
| Network Frequency | 50/60 Hz |
| Width | 422 mm |
