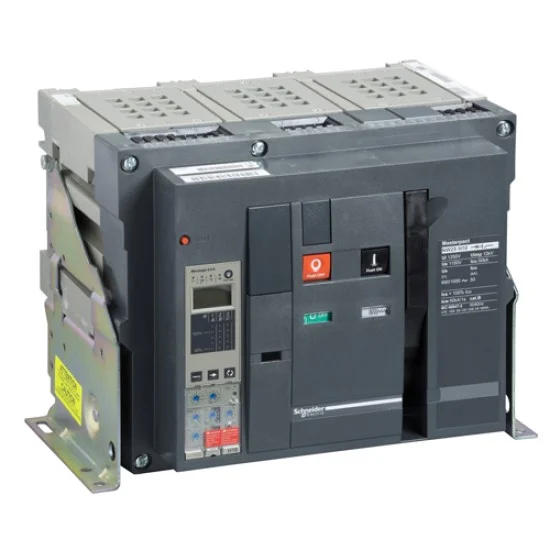

Schneider Air Circuit Breaker 2500A 3 Pole 48300
₨592,500.00
The latest Schneider Air Circuit Breaker 2500A 3 Pole 48300 price in Pakistan is Rs. 592,500/- updated on September 10, 2026.
OVERVIEW:
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Documents:
Schneider Air Circuit Breaker 2500A 3 Pole 48300 Data Sheet.pdf
Capacitance
| Breaking capacity | 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2 |
Current AC
| [In] rated current | 2500 A ( 40°C ) |
Summary
| Ambient Air Temperature for Storage | -40…85°C |
| Height | 439 mm |
| Depth | 394.5 mm |
HARDWARE FEATURES
| Mounting Mode | Drawout |
| Network Type | AC |
| Protection Type | Without protection |
Type
| product or component type | Basic frame |
UC100
| Standards | IEC 60947-2 |
General Specification
| Connection pitch | 115 mm |
| Control Type | Push-button |
| Electrical Durability | AC-23A : 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 AC-23A : 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 AC-3 : 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 |
| Mechanical Durability | 10000 cycles without maintenance conforming to IEC 60947-2 20000 cycles with maintenance conforming to IEC 60947-2 |
| Network Frequency | 50/60 Hz |
| Poles Description | 3P |
| Width | 441 mm |
| [Ics] Rated Service Breaking Capacity | Ics 65 kA 525 V AC 50/60 Hz conforming to IEC 60947-2 Ics 65 kA 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-2 |
OTHERS
| Certifications | ASTA |
