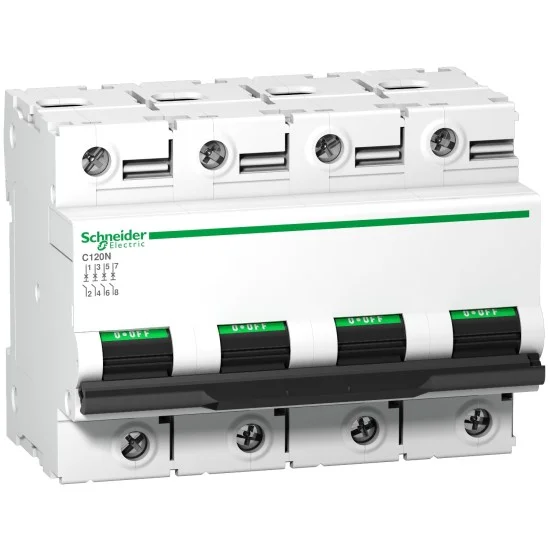

Schneider C120N C Curve 4 Pole Miniature Circuit Breaker
₨ 40,700
The latest Schneider C120N C Curve 4 Pole Miniature Circuit Breaker price in Pakistan is Rs. 40,700/- updated on October 28, 2026.
You can buy the Schneider C120N C Curve 4 Pole Miniature Circuit Breaker online at Roshanex in Pakistan.
FEATURES:
- Acti9 C120N 4P Miniature Circuit breaker – A9N18371 63A
- Acti9 C120N 4P Miniature Circuit breaker – A9N18372 80A
- Acti9 C120N 4P Miniature Circuit breaker – A9N18374 100A
- Acti9 C120N 4P Miniature Circuit breaker – A9N18376 125A
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
Camera Specification
| Protection Level | IP20 conforming to IEC 60529 |
Capacitance
| Breaking capacity | 6 kA Icu conforming to EN/IEC 60947-2 – 440 V AC 50/60 Hz 10 kA Icu conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz 20 kA Icu conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz 10 kA Icu conforming to EN/IEC 60947-2 – <= 500 V DC 10000 A Icn conforming to EN/IEC 60898-1 – 230…400 V AC 50/60 Hz |
Current AC
| [In] rated current | 63A,80A, 100A, 125A |
Summary
| Ambient Air Temperature for Operation | -25…70°C |
| Ambient Air Temperature for Storage | -40…85°C |
| Height | 81 mm |
| Range | Acti 9 |
HARDWARE FEATURES
| Depth | 73 mm |
| Network Type | AC |
| Standards | EN/IEC 60947-2 EN/IEC 60898-1 |
TECHNICAL SPECIFICATION
| Operating Altitude | 2000 m |
Type
| product or component type | Miniature circuit-breaker |
General Specification
| Connections – terminals | Tunnel type terminals 1.5…35 mm² flexible Tunnel type terminals 1…50 mm² rigid |
| Control Type | Toggle |
| Earth-Leakage Protection | Separate block |
| Electrical Durability | 5000 cycles conforming to IEC 60947-2 10000 cycles conforming to IEC 60947-2 (A9N18371) |
| Mechanical Durability | 20000 cycles |
| Network Frequency | 50/60 Hz |
| Poles Description | 4P |
| Tightening Torque | 3.5 N.m top or bottom |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Width | 108mm |
| Wire Stripping Length | 14 mm top or bottom |
| [Ics] Rated Service Breaking Capacity | 4.5 kA at 75 % of breaking cap. conforming to EN/IEC 60947-2 – 440 V AC 50/60 Hz 7.5 kA at 75 % of breaking cap. conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz 15 kA at 75 % of breaking cap. conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz 7500 A at 75 % of breaking cap. conforming to EN/IEC 60898-1 – 230…400 V AC 50/60 Hz 10 kA at 100 % of breaking cap. conforming to EN/IEC 60947-2 – <= 500 V DC |
| [Ue] Rated Operational Voltage | <= 500 V DC 220…240 V AC 50/60 Hz 380…415 V AC 50/60 Hz 440 V AC 50/60 Hz 230…400 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
