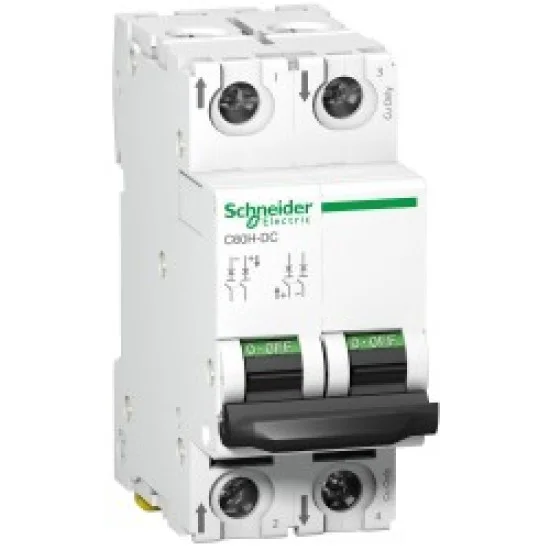

Schneider C60H-DC C Curve 2 Pole Miniature Circuit Breaker
₨ 16,500
The latest Schneider C60H-DC C Curve 2 Pole Miniature Circuit Breaker price in Pakistan is Rs. 16,500/- updated on October 27, 2026.
OVERVIEW:
- Schneider C60H-DC C Curve 2 Pole Miniature Circuit Breaker
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
Capacitance
| Breaking capacity | Icu 20 kA at 220 V DC conforming to GB 14048.2 Icu 10 kA at 440 V DC conforming to EN 60947-2 Icu 10 kA at 440 V DC conforming to IEC 60947-2 Icu 6 kA at 500 V DC conforming to EN 60947-2 Icu 6 kA at 500 V DC conforming to IEC 60947-2 Icu 20 kA at 220 V DC conforming to IEC 60947-2 Icu 20 kA at 250 V DC conforming to GB 14048.2 Icu 20 kA at 250 V DC conforming to IEC 60947-2 |
Current AC
| [In] rated current | 0.5A, 1A, 2A, 3A, 4A, 5A, 6A, 10A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, 63A |
Summary
| Ambient Air Temperature for Operation | -25…70°C |
| Ambient Air Temperature for Storage | -40…85°C |
| Weight | 0.256 kg |
| Range | Acti 9 |
HARDWARE FEATURES
| Network Type | DC |
| Standards | IEC 60947-2 EN 60947-2 |
| Mounting | Mode: Fixed Support: 35 mm symmetrical DIN rail |
TECHNICAL SPECIFICATION
| Operating Altitude | 2000 m |
General Specification
| Control Type | Toggle |
| Earth-Leakage Protection | Without |
| Electrical Durability | 6000 cycles – 500 V DC 3000 cycles – 500 V DC |
| Mechanical Durability | 20000 cycles |
| Network Frequency | 50/60 Hz |
| Poles Description | 2P |
| Tightening Torque | 2.5 N.m top or bottom power circuit |
| Tropicalisation | 2 conforming to IEC 60068-2 |
| [Ics] Rated Service Breaking Capacity | 15 kA 75 % x Icu at 220 V DC conforming to EN 60947-2 15 kA 75 % x Icu at 220 V DC conforming to IEC 60947-2 15 kA 75 % x Icu at 250 V DC conforming to EN 60947-2 15 kA 75 % x Icu at 250 V DC conforming to IEC 60947-2 4.5 kA 75 % x Icu at 500 V DC conforming to EN 60947-2 4.5 kA 75 % x Icu at 500 V DC conforming to IEC 60947-2 7.5 kA 75 % x Icu at 440 V DC conforming to EN 60947-2 7.5 kA 75 % x Icu at 440 V DC conforming to IEC 60947-2 |
| [Ue] Rated Operational Voltage | 500 V DC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 500 V DC conforming to IEC 60947-2 500 V DC conforming to EN 60947-2 |
