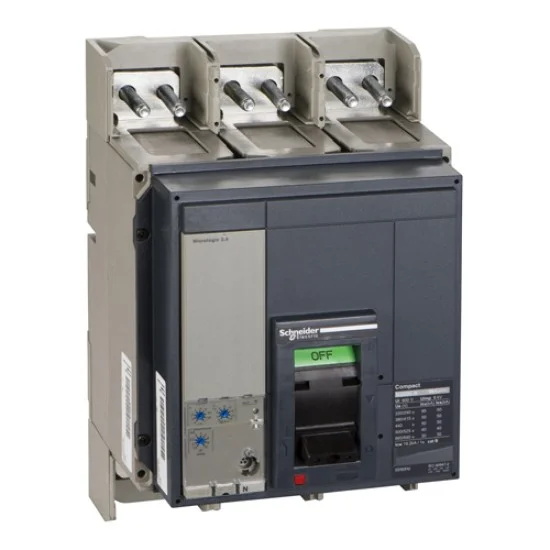

Schneider Circuit breaker Compact NS1000N 1000A 3 Pole
₨ 401,500
The latest Schneider Circuit breaker Compact NS1000N 1000A 3 Pole price in Pakistan is Rs. 401,500/- updated on October 26, 2026.
You can buy the Schneider Circuit breaker Compact NS1000N 1000A 3 Pole online at Roshanex in Pakistan.
OVERVIEW:
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Documents:
Schneider Circuit breaker Compact NS1000N 1000A 3 Pole Data Sheet.pdf
Capacitance
| Breaking capacity | 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 |
Summary
| Ambient Air Temperature for Operation | -25…70°C |
| Ambient Air Temperature for Storage | -50…85°C |
| Height | 327 mm |
| Range | Compact |
| Depth | 147 mm |
| Brand Name | Schneider Electric |
HARDWARE FEATURES
| Auxiliary Contact Composition | 1 NO/NC |
| IK Degree of Protection | IK07 conforming to EN 50102 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Network Type | AC |
| Protection Type | Instantaneous short-circuit protection Overload protection (long time) |
| Trip Unit Name | Micrologic 2.0 |
| Trip Unit Rating | 1000 A ( 50°C ) |
| Trip Unit Technology | Electronic |
Type
| product or component type | Circuit breaker |
UC100
| Standards | IEC 60947-2 |
General Specification
| Control Type | Rotary handle Toggle |
| Electrical Durability | 2000 cycles IEC 60947-2 690 V In AC 50/60 Hz 4000 cycles IEC 60947-2 690 V In/2 AC 50/60 Hz 5000 cycles IEC 60947-2 440 V In AC 50/60 Hz 6000 cycles IEC 60947-2 440 V In/2 AC 50/60 Hz |
| Mechanical Durability | 10000 cycles |
| Network Frequency | 50/60 Hz |
| Poles Description | 3P |
| Protected Poles Description | 3t |
| Width | 210 mm |
| [Ics] Rated Service Breaking Capacity | Ics 30 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2 Ics 40 kA 500/525 V AC 50/60 Hz conforming to IEC 60947-2 Ics 50 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2 Ics 50 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2 Ics 50 kA 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [tr] Long-time Delay Adjustment Range | 0.5…24 s 6 x Ir 0.7…16.6 s 7.2 x Ir 12.5…600 s 1.5 x Ir |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
OTHERS
| Certifications | ASEFA ASTA |
