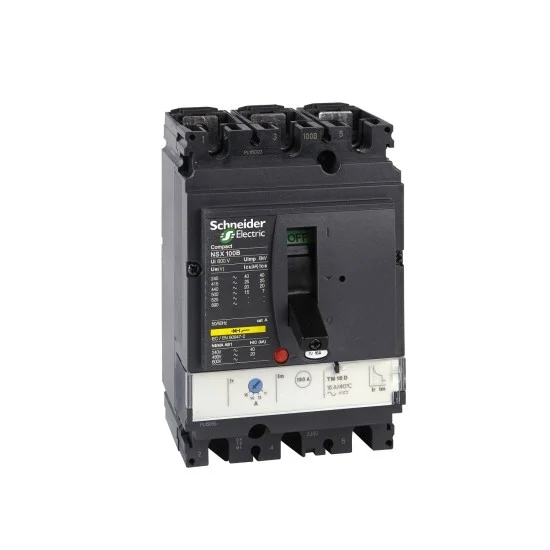

Schneider Circuit Breaker Compact NSX100B TMD 16 A 3 Pole 3d
₨12,000.00
The latest Schneider Circuit Breaker Compact NSX100B TMD 16 A 3 Pole 3d price in Pakistan is Rs. 12,000/- updated on July 21, 2026.
OVERVIEW:
- Circuit breaker Compact NSX100B TMD 16 A 3 pole 3d
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Capacitance
| Breaking capacity | 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
Current AC
| [In] rated current | 100 A ( 40°C ) |
Summary
| Ambient Air Temperature for Operation | -35…70°C |
| Ambient Air Temperature for Storage | -55…85°C |
| Height | 161 mm |
| Range | Compact |
HARDWARE FEATURES
| Depth | 86 mm |
| IK Degree of Protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Network Type | AC |
| Protection Type | Overload protection (thermal) L Short-circuit protection (magnetic) I |
| Trip Unit Rating | 16 A ( 40°C ) |
| Weight | 2.05 kg |
Type
| product or component type | Circuit breaker |
General Specification
| Control Type | Toggle |
| Electrical Durability | 10000 cycles 690 V In conforming to IEC 60947-2 20000 cycles 690 V In/2 conforming to IEC 60947-2 30000 cycles 440 V In conforming to IEC 60947-2 50000 cycles 440 V In/2 conforming to IEC 60947-2 |
| Mechanical Durability | 50000 cycles |
| Network Frequency | 50/60 Hz |
| Poles Description | 3P |
| Protected Poles Description | 3t |
| Width | 105 mm |
| [Ics] Rated Service Breaking Capacity | Ics 20 kA 440 V AC 50/60 Hz conforming to IEC 60947-2 Ics 25 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2 Ics 40 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2 Ics 7.5 kA 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
