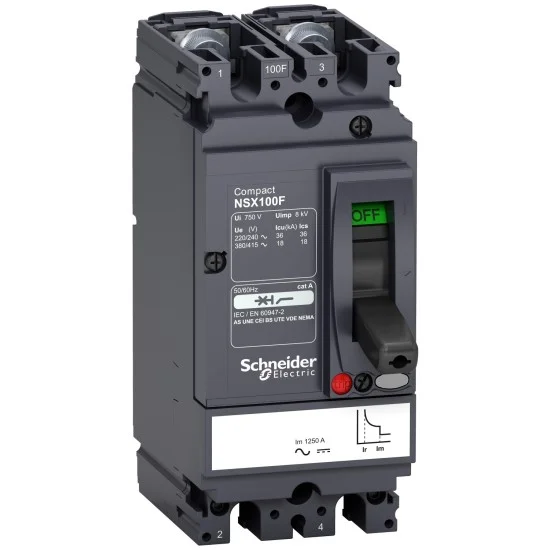

Schneider Circuit Breaker Compact NSX100F TMD 16A 2Pole 2d
₨16,800.00
The latest Schneider Circuit Breaker Compact NSX100F TMD 16A 2Pole 2d price in Pakistan is Rs. 16,800/- updated on September 9, 2026.
OVERVIEW:
- Circuit breaker Compact NSX100F TMD 100A 1pole 1d
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Capacitance
| Breaking capacity | 18 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 18 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 250 V DC 1P conforming to IEC 60947-2 36 kA Icu at 48/125 V DC 1P conforming to IEC 60947-2 36 kA Icu at 500 V DC 2P conforming to IEC 60947-2 18 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 18 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 220 V AC 50/60 Hz conforming to IEC 60947-2 |
Current AC
| [In] rated current | 100 A ( 40°C ) 100 A ( 65°C ) |
Summary
| Ambient Air Temperature for Operation | -25…70°C |
| Ambient Air Temperature for Storage | -50…85°C |
| Height | 161 mm |
| Range | Compact |
HARDWARE FEATURES
| Auxiliary Contact Composition | Without |
| Depth | 86 mm |
| IK Degree of Protection | IK07 conforming to EN 50102 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Network Type | DC |
| Protection Type | Overload protection (thermal) L Short-circuit protection (magnetic) I |
| Standards | EN/IEC 60947 UL 508 |
| Trip Unit Rating | 16 A ( 40°C ) |
Type
| product or component type | Circuit breaker |
General Specification
| Control Type | Toggle |
| Electrical Durability | 10000 cycles 277 V AC 50/60 Hz In conforming to IEC 60947-2 20000 cycles 277 V AC 50/60 Hz In/2 conforming to IEC 60947-2 |
| Magnetic Tripping Current | 1000 A 1250 A 190 A 260 A 300 A 500 A 640 A 800 A |
| Mechanical Durability | 20000 cycles |
| Network Frequency | 50/60 Hz |
| Poles Description | 2P |
| Protected Poles Description | 2t |
| Width | 70 mm |
| [Ics] Rated Service Breaking Capacity | Ics 18 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2 Ics 18 kA 440 V AC 50/60 Hz conforming to IEC 60947-2 Ics 18 kA 500 V AC 50/60 Hz conforming to IEC 60947-2 Ics 18 kA 525 V AC 50/60 Hz conforming to IEC 60947-2 Ics 8 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2 Ics 36 kA 220 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ue] Rated Operational Voltage | 500 V DC conforming to IEC 60947-2 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz IEC 60947-2 |
