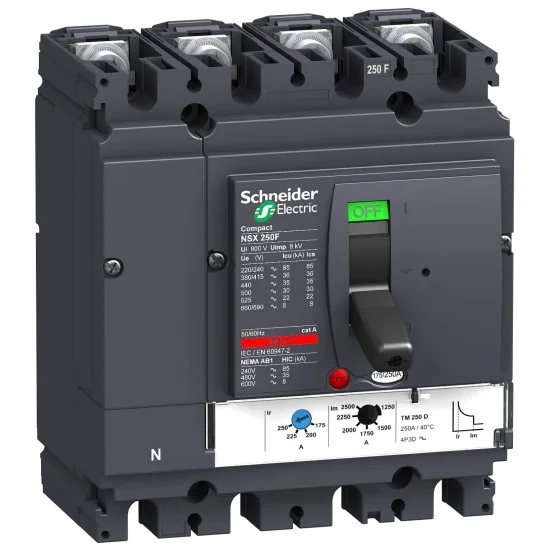

Schneider Circuit Breaker Compact NSX250F TMD 250A 4Pole 4d
₨134,200.00
The latest Schneider Circuit Breaker Compact NSX250F TMD 250A 4Pole 4d price in Pakistan is Rs. 134,200/- updated on July 23, 2026.
OVERVIEW:
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Documents:
Schneider Circuit Breaker Compact NSX250F TMD 250A 4Pole 4d Data Sheet.pdf
Capacitance
| Breaking capacity | 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 600 V AC 50/60 Hz conforming to UL 508 35 kA at 480 V AC 50/60 Hz conforming to UL 508 85 kA at 240 V AC 50/60 Hz conforming to UL 508 |
Current AC
| [In] rated current | 250 A ( 40°C ) |
Summary
| Ambient Air Temperature for Operation | -35…70°C |
| Ambient Air Temperature for Storage | -55…85°C |
| Height | 161 mm |
| Range | Compact |
HARDWARE FEATURES
| Auxiliary Contact Composition | Without |
| Depth | 86 mm |
| IK Degree of Protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Network Type | AC |
| Protection Type | Overload protection (thermal) L Short-circuit protection (magnetic) I |
| Trip Unit Rating | 250 A ( 40°C ) |
| Weight | 2.8 kg |
Type
| product or component type | Circuit breaker |
General Specification
| Control Type | Toggle |
| Electrical Durability | 10000 cycles 440 V In conforming to IEC 60947-2 10000 cycles 690 V In/2 conforming to IEC 60947-2 20000 cycles 440 V In/2 conforming to IEC 60947-2 5000 cycles 690 V In conforming to IEC 60947-2 |
| Mechanical Durability | 20000 cycles |
| Network Frequency | 50/60 Hz |
| Poles Description | 4P |
| Protected Poles Description | 4t |
| Width | 140 mm |
| [Ics] Rated Service Breaking Capacity | Ics 22 kA 525 V AC 50/60 Hz conforming to IEC 60947-2 Ics 30 kA 500 V AC 50/60 Hz conforming to IEC 60947-2 Ics 35 kA 440 V AC 50/60 Hz conforming to IEC 60947-2 Ics 36 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2 Ics 8 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2 Ics 85 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| [tr] Long-time Delay Adjustment Range | 15 s 6 x Ir 120…400 s 1.5 x In |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
