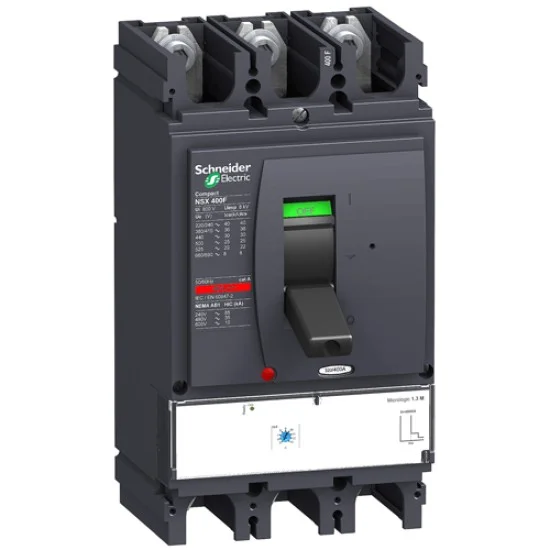

Schneider Circuit Breaker NSX400H 320A 3Pole LV432750
₨ 117,650
The latest Schneider Circuit Breaker NSX400H 320A 3Pole LV432750 price in Pakistan is Rs. 117,650/- updated on October 29, 2026.
You can buy the Schneider Circuit Breaker NSX400H 320A 3Pole LV432750 online at Roshanex in Pakistan.
OVERVIEW:
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Documents:
Schneider Circuit Breaker NSX400H 320A 3Pole LV432750 Data Sheet.pdf
Current AC
| [In] rated current | 630 A ( 40°C ) |
Summary
| Height | 255 mm |
| Range | Compact |
HARDWARE FEATURES
| Auxiliary Contact Composition | Without |
| Depth | 110 mm |
| IK Degree of Protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Network Type | AC |
| Protection Type | Overload protection (long time) L Short time short-circuit protection with fixed delay So Instantaneous short-circuit protection I |
| Trip Unit Name | Micrologic 2.3 |
| Trip Unit Rating | 400 A ( 40°C ) |
| Weight | 8.13 kg |
Type
| product or component type | Circuit breaker |
General Specification
| Control Type | Toggle |
| Mechanical Durability | 15000 cycles |
| Poles Description | 3P |
| Protected Poles Description | 3t |
| Width | 140 mm |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
