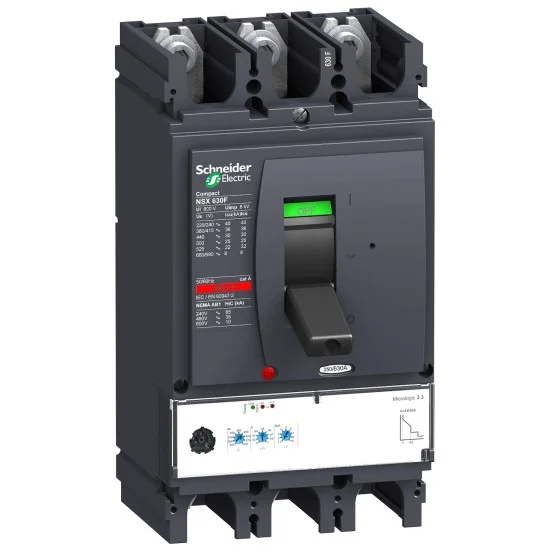

Schneider Circuit Breaker NSX630H 630A 3Pole LV432895
₨ 231,000
The latest Schneider Circuit Breaker NSX630H 630A 3Pole LV432895 price in Pakistan is Rs. 231,000/- updated on October 28, 2026.
You can buy the Schneider Circuit Breaker NSX630H 630A 3Pole LV432895 online at Roshanex in Pakistan.
OVERVIEW:
- Micrologic 2.3 – Electrical Durability:
- 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
- 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
- 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
- 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
- 20 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
- 30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
- 20 kA at 600 V AC 50/60 Hz conforming to UL 508
- 35 kA at 480 V AC 50/60 Hz conforming to UL 508
- 85 kA at 240 V AC 50/60 Hz conforming to UL 508
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
Current AC
| [In] rated current | 630 A ( 40°C ) |
Summary
| Height | 255 mm |
| Range | Compact |
HARDWARE FEATURES
| Auxiliary Contact Composition | Without |
| Depth | 110 mm |
| IK Degree of Protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Network Type | AC |
| Protection Type | Overload protection (long time) L Short time short-circuit protection with fixed delay So Instantaneous short-circuit protection I |
| Trip Unit Name | Micrologic 2.3 |
| Trip Unit Rating | 630 A ( 40°C ) |
| Weight | 6.05 kg |
Type
| product or component type | Circuit breaker |
General Specification
| Control Type | Toggle |
| Mechanical Durability | 15000 cycles |
| Poles Description | 3P |
| Protected Poles Description | 3t |
| Width | 140 mm |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
