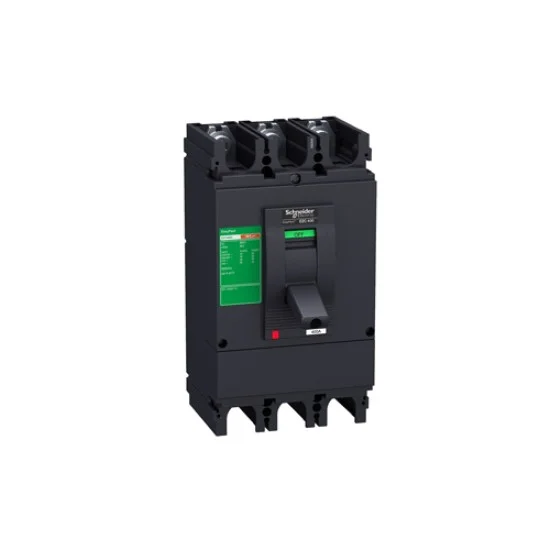

Schneider Circuit Breaker TMD EZC400H3320N
₨ 115,500
The latest Schneider Circuit Breaker TMD EZC400H3320N price in Pakistan is Rs. 115,500/- updated on October 26, 2026.
You can buy the Schneider Circuit Breaker TMD EZC400H3320N online at Roshanex in Pakistan.
OVERVIEW:
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Also, you can browse more Schneider Electric products at Roshanex. In addition, our team can help you choose the right model before you order.
Current AC
| [In] rated current | 400 A ( 40°C ) |
Summary
| Ambient Air Temperature for Operation | -25…70°C |
| Ambient Air Temperature for Storage | -35…85°C |
| Height | 255 mm |
HARDWARE FEATURES
| Depth | 140 mm |
| IK Degree of Protection | IK07 conforming to EN 50102 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting Mode | Fixed |
| Mounting Support | Backplate |
| Network Type | AC. DC |
| Protection Type | Overload protection Short-circuit protection |
| Trip Unit Name | TM-D |
| Trip Unit Rating | 320 A ( 50°C ) |
Type
| product or component type | Circuit breaker |
General Specification
| Connection pitch | 25 mm |
| Control Type | Toggle |
| Electrical Durability | Category A : 5000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical Durability | 10000 cycles |
| Network Frequency | 50/60 Hz |
| Poles Description | 3P |
| Protected Poles Description | 3t |
| Width | 185 mm |
| [Ue] Rated Operational Voltage | 250 V DC conforming to IEC 60947-2 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
