Industrial Automation & Circuit Protection, SCHNEIDER ELECTRIC

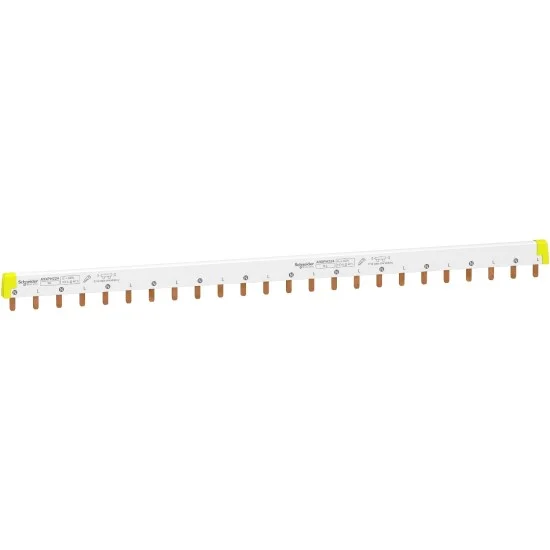

Schneider Comb-Busbar C Curve 2 Pole 24 Modules
₨ 4,130
The latest Schneider Comb-Busbar C Curve 2 Pole 24 Modules price in Pakistan is Rs. 4,130/- updated on October 26, 2026.
You can buy the Schneider Comb-Busbar C Curve 2 Pole 24 Modules online at Roshanex in Pakistan.
OVERVIEW:
- Acti 9 – comb busbar 1L + N 18 mm pitch 24 modules 100A
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
Camera Specification
| Protection Level | IP20 with end-pieces and tooth covers |
Display Specification
| Colours | White ( RAL 9003 ) |
POWER
| Voltage | 415 V AC |
Summary
| Insulation | Insulated |
| Length in 18 mm modules | 24 |
| Lines Description | 1L + N |
| Number of ways | 12 ways N + 1 L |
| Poles configuration for 1 way | 1 x 1P + N 1 x 2P |
| Range compatibility | Multi 9 C60 Acti 9 iK60 Acti 9 iC60 Acti 9 iID Acti 9 iID K Acti 9 iSW Acti 9 iSW-NA |
| [Ie] rated operational current | 100 A ( 40°C ) |
| Resistance | 960°C ( 30 s ) conforming to IEC 60695-2-1 |
| Range | Acti 9 |
Antenna
| Connector Type | Tooth |
HARDWARE FEATURES
| Accessory | Connection accessory |
| Standards | IEC 61439-2 IEC 60947-7-1 |
Type
| product or component type | Comb busbar |
General Specification
| Device presentation | Cuttable |
| Width | 430 mm |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-2 |
