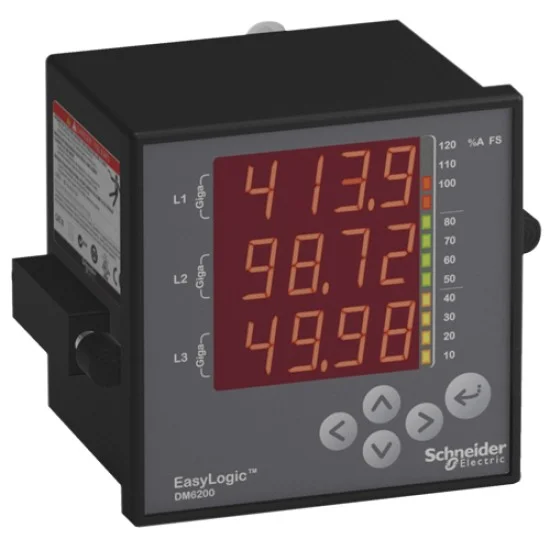

Schneider DM6200 Digital Meter
₨ 21,280
The latest Schneider DM6200 Digital Meter price in Pakistan is Rs. 21,280/- updated on October 26, 2026.
You can buy the Schneider DM6200 Digital Meter online at Roshanex in Pakistan.
OVERVIEW:
- DM6200 Digital meter with basic readings – with communication – METSEDM6200
Type Of Measurement:
- Phase angle
- Phase unbalance
- RPM
- Voltage
- Current
- Frequency
- Power factor
Electromagnetic Compatibility:
- Electrostatic discharge immunity test, conforming to IEC 61000-4-2
- Susceptibility to electromagnetic fields, conforming to IEC 61000-4-3
- Electrical fast transient/burst immunity test, conforming to IEC 61000-4-4
- 1.2/50 µs shock waves immunity test, conforming to IEC 61000-4-5
- Conducted RF disturbances, conforming to IEC 61000-4-6
- Immunity to impulse waves, conforming to IEC 61000-4-12
- Conducted and radiated emissions class A, conforming to CISPR 11
- Immunity to microbreaks and voltage drops, conforming to IEC 61000-4-11
Documents:
Summary
| Ambient Air Temperature for Operation | -10…60°C |
| Ambient Air Temperature for Storage | -25…70°C |
| Height | 96 mm |
| Range | PowerLogic |
| Depth | 80 mm |
HARDWARE FEATURES
| IP degree of protection | IP40 back IP51 front face |
Type
| product or component type | Multimeter |
General Specification
| Network Frequency | 45…65 Hz |
| Power Consumption | 3 VA at 240 V AC |
| weight | 0.4 kg |
| Width | 96 mm |
