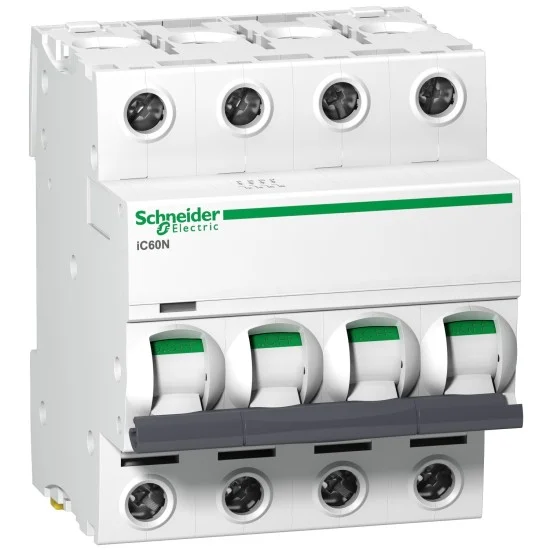

Schneider iC60 Miniature Circuit Breaker 4Pole 63A
₨ 16,000
The latest Schneider iC60 Miniature Circuit Breaker 4Pole 63A price in Pakistan is Rs. 16,000/- updated on October 25, 2026.
You can buy the Schneider iC60 Miniature Circuit Breaker 4Pole 63A online at Roshanex in Pakistan.
OVERVIEW:
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Documents:
Schneider iC60 Miniature Circuit Breaker 4Pole 63A Data Sheet.pdf
Camera Specification
| Protection Level | IP20 conforming to IEC 60529 |
Capacitance
| Breaking capacity | 6 kA Icu conforming to EN/IEC 60947-2 – 440 V AC 50/60 Hz 10 kA Icu conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz 20 kA Icu conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz 36 kA Icu conforming to EN/IEC 60947-2 – 12…133 V AC 50/60 Hz 6 kA Icu conforming to EN/IEC 60947-2 – 220…250 V DC 6000 A Icn conforming to EN/IEC 60898-1 – 415 V AC 50/60 Hz |
Current AC
| [In] rated current | 63 A |
Summary
| Ambient Air Temperature for Operation | -35…70°C |
| Ambient Air Temperature for Storage | -40…85°C |
| Height | 85 mm |
| Range | Acti 9 |
HARDWARE FEATURES
| Depth | 78.5 mm |
| Network Type | AC |
| Standards | EN/IEC 60947-2 EN/IEC 60898-1 |
| Weight | 0.5 kg |
Type
| product or component type | Miniature circuit-breaker |
General Specification
| Connections – terminals | Single terminal, top or bottom rigid wire(s) 1…25 mm² max Single terminal, top or bottom flexible wire(s) 1…16 mm² max |
| Control Type | Toggle |
| Earth-Leakage Protection | Separate block |
| Electrical Durability | 10000 cycles |
| Mechanical Durability | 20000 cycles |
| Network Frequency | 50/60 Hz |
| Poles Description | 4P |
| Tightening Torque | 2 N.m top or bottom |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Width | 72 mm |
| Wire Stripping Length | 14 mm top or bottom |
| [Ics] Rated Service Breaking Capacity | 7.5 kA 75 % x Icu conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz 15 kA 75 % x Icu conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz 6 kA 100 % x Icu conforming to EN/IEC 60947-2 – 100…133 V DC 27 kA 75 % x Icu conforming to EN/IEC 60947-2 – 12…133 V AC 50/60 Hz 6000 A 100 % x Icu conforming to EN/IEC 60898-1 – 415 V AC 50/60 Hz 4.5 kA 75 % x Icu conforming to EN/IEC 60947-2 – 440 V AC 50/60 Hz |
| [Ue] Rated Operational Voltage | 440 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
