Industrial Automation & Circuit Protection, SCHNEIDER ELECTRIC

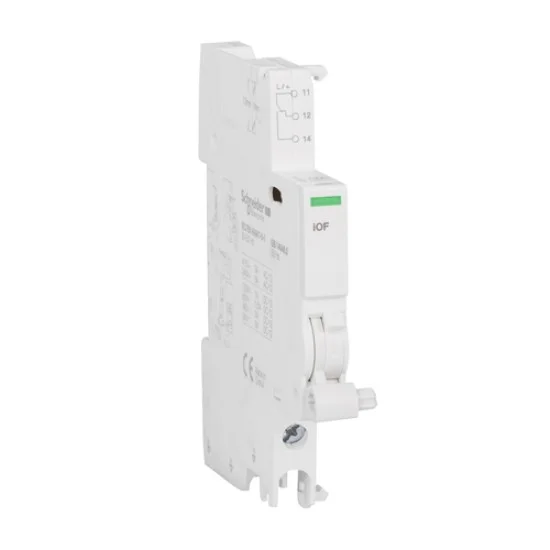

Schneider iOF Auxiliary Switch For MCB
₨ 5,500
The latest Schneider iOF Auxiliary Switch For MCB price in Pakistan is Rs. 5,500/- updated on October 26, 2026.
You can buy the Schneider iOF Auxiliary Switch For MCB online at Roshanex in Pakistan.
OVERVIEW:
- Explore roshanex.pk, Get latest Schneider & other electronic components at discounted price in Pakistan with free cash on delivery service across Pakistan. We provide Schneider products at official prices from distributor and dealers in Pakistan.
Documents:
Current AC
| [In] rated current | 1 A at 130 V DC 1.5 A at 60 V DC 2 A at 48 V DC 6 A at 24 V DC 3 A at 415 V AC – 50/60 Hz 6 A at 240 V AC – 50/60 Hz |
Summary
| Ambient Air Temperature for Operation | -35…70°C |
| Ambient Air Temperature for Storage | -40…85°C |
| Height | 86 mm |
| Pollution Degree | 3 conforming to EN/IEC 60947-5-1 |
| Range compatibility | Acti 9 iC60 Acti 9 iDPN Vigi Acti 9 iID Acti 9 iSW Acti 9 iSW-NA Acti 9 iC60 RCBO Acti 9 iC65 Acti 9 ARA Acti 9 RCA Acti 9 iDPN (China version) Acti 9 iC40 |
| Weight | 32 g |
| Depth | 73 mm |
HARDWARE FEATURES
| IP degree of protection | IP20 conforming to EN/IEC 60947-5-1 |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Standards | EN/IEC 60947-5-1 |
General Specification
| Connections – terminals | crew clamp terminal in bottom 2 cable(s) 1.5 mm² flexible with ferrule Screw clamp terminal in bottom 1 cable(s) 1…4 mm² rigid Screw clamp terminal in bottom 1 cable(s) 0.5…2.5 mm² flexible Screw clamp terminal in bottom 2 cable(s) 2.5 mm² rigid |
| Tightening Torque | 1 N.m |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Type | OC contact |
| Width | 9 mm |
| Wire Stripping Length | 10 mm |
| [Ui] rated insulation voltage | 4 kV |
