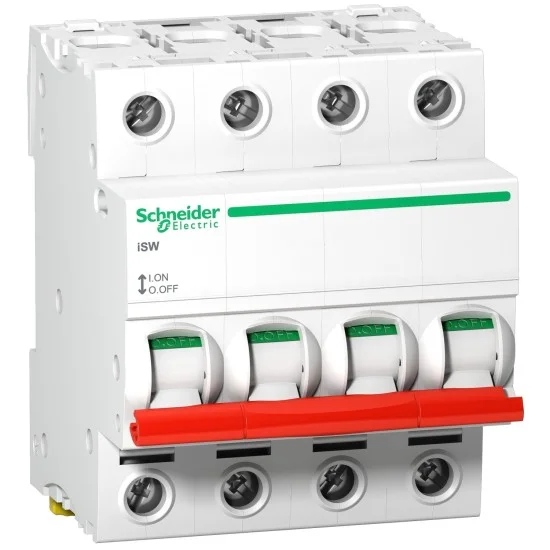

Schneider iSW & SW Switches – 4 Pole – 63 A
₨ 5,250
The latest Schneider iSW & SW Switches - 4 Pole - 63 A price in Pakistan is Rs. 5,250/- updated on October 26, 2026.
OVERVIEW:
- Explore roshanex.pk find out latest Schneider iSW & SW Switches – 4 Pole – 63 A products & other electronic components at a discounted price in Pakistan with free cash on delivery service across Pakistan. We are official distributors of Schneider iSW & SW Switches – 4 Pole – 63 A in Pakistan.
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
Display Specification
| Colours | White |
Summary
| Ambient Air Temperature for Operation | -25…60°C |
| Ambient Air Temperature for Storage | -40…85°C |
| Height | 85 mm |
| [Ie] rated operational current | 63 A 415 V AC 50/60 Hz |
| Range | Acti 9 |
HARDWARE FEATURES
| Depth | 73 mm |
| IP degree of protection | IP20 |
| Mounting Mode | Fixed |
| Mounting Support | DIN rail |
| Standards | EN 60947-3 IEC 60947-3 BS EN 60947-3 AS 60947-3 NZS 60947-3 |
Type
| product or component type | Switch disconnector |
General Specification
| Connections – terminals | Tunnel type terminals: (top or bottom) rigid Tunnel type terminals: (top or bottom) flexible Tunnel type terminals: (top or bottom) flexible with ferrule |
| Control Type | Toggle |
| Electrical Durability | 15000 cycles |
| Mechanical Durability | 20000 cycles |
| Poles Description | 4P |
| Tightening Torque | 3.5 N.m |
| Tropicalisation | 2 |
| Width | 72 mm |
| Wire Stripping Length | 9 mm |
| [Ue] Rated Operational Voltage | 415 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
