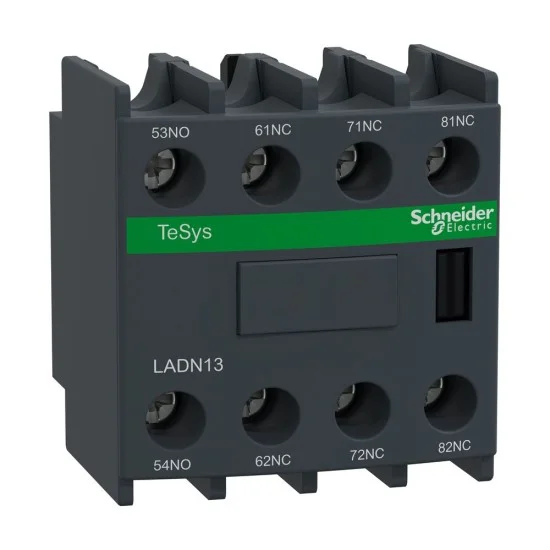

Schneider LADN13 TeSys Contactor
₨ 4,400
The latest Schneider LADN13 TeSys Contactor price in Pakistan is Rs. 4,400/- updated on October 26, 2026.
The Schneider LADN13 TeSys Contactor is a contactor for switching motors and electrical loads.
Product Details
TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It also provides 1NO+3NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Also, Clip-on front mounting, it procures high reliability and durability. Moreover, LADN13 is a Schneider Electric add-on auxiliary contact block for TeSys Deca and TeSys F contactors. Besides this, multi standards certified (IEC, UL, CSA, CCC, EAC).
It can be used in safety applications thanks to its NC certified mirror contacts. Additionally, easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Add-on block with 1NO+3NC mechanically linked auxiliary contacts, with instantaneous operation.
Suitable to be included in the control of safety systems thanks to its NC certified mirror contacts. High electrical durability , several millions of operating cycles in AC-14/AC-15/DC-13 according conditions. Mounting by clip-on on front of all TeSys Deca and TeSys F contactors.
Features
- New modern look & feel of all machines
- Designed to meet the requirements of industrial and HVAC applications
- Easier to install and operate with multi-standard screws
- With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
- Digital customer experience for technical documents
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
Summary
| Range compatibility | TeSys D CAD TeSys D LC1D TeSys F LC1F TeSys F CR1F TeSys Deca CAD TeSys Deca LC1D |
HARDWARE FEATURES
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | EN/IEC 60947-5-1 GB/T 14048.5 EN 50012 UL 60947-5-1 CSA C22.2 No 60947-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ |
TECHNICAL SPECIFICATION
| Insulation Voltage | 690 V IEC 60947-5-1 600 V UL 600 V CSA |
| Operational Current | 6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13 |
| Operational Voltage | 690 V AC 25…400 Hz |
| Thermal Current | 10 A (at 140 °F (60°C)) |
General Specification
| Depth | 1.7 in (42 mm) |
| Height | 1.9 in (48 mm) |
| Mechanical Durability | 30 Mcycles |
| Switching current | 5 mA |
| Terminal | screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)rigid without cable end screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)rigid without cable end |
| Weight | 0.11 lb(US) (0.05 kg) |
| Width | 1.7 in (44 mm) |
