Industrial Automation & Circuit Protection, Industrial Contactors, SCHNEIDER ELECTRIC

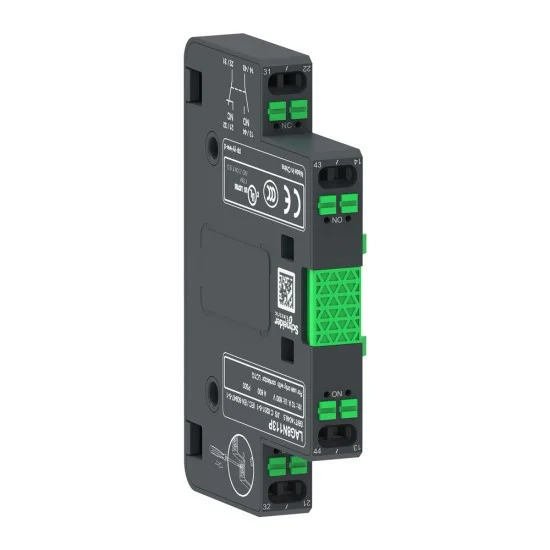

Schneider LAG8N113P TeSys Contactor
₨5,600.00
The latest Schneider LAG8N113P TeSys Contactor price in Pakistan is Rs. 5,600/- updated on September 9, 2026.
Product Details:
- These accessories are auxiliary contact block 1NO+1NC for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals R1/L1. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.
Features:
- Max 4NO+4NC auxiliary contacts options provide flexibility to address your various control circuit needs
- Choice of screw/spring connection for control terminals provides flexibility, and reduced assembly/installation time
- One reference compatible with entire range means simpler to select and less inventory to carry
- Default NC aux contact are mechanically linked mirror contacts to ensure safety chain
- Highly reliable and suitable for 17V 1mA to address more challenging specific control applications
HARDWARE FEATURES
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB 14048.5 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-1 UL 60335-2-40:Annex JJ |
TECHNICAL SPECIFICATION
| Insulation Voltage | 600 V IEC 60947-5-1 600 V CSA 600 V UL |
| Operational Voltage | 600 V AC 25…400 Hz |
| Thermal Current | 10 A (at 140 °F (60°C)) |
General Specification
| Depth | 3.3 in (84.8 mm) |
| Height | 2.2 in (55.8 mm) |
| Making Capacity | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 |
| Mechanical Durability | 8 Mcycles |
| Terminal | screw clamp terminals 0.001…0.004 in² (0.75…2.5 mm²)solid stranded without cable end screw clamp terminals 0.001…0.004 in² (0.75…2.5 mm²)flexible with cable end |
| Weight | 0.11 lb(US) (0.05 kg) |
| Width | 0.6 in (15.4 mm) |
