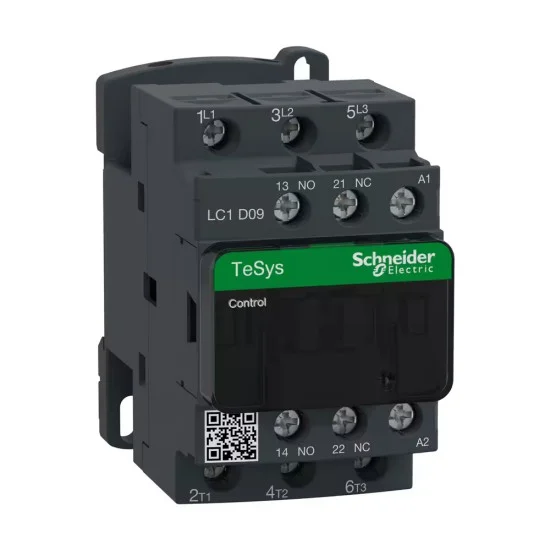

Schneider LC1D09M7 TeSys D Contactor
₨ 4,080
The latest Schneider LC1D09M7 TeSys D Contactor price in Pakistan is Rs. 4,080/- updated on October 26, 2026.
You can buy the Schneider LC1D09M7 TeSys D Contactor online at Roshanex in Pakistan.
Product Details:
- TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
Summary
| Pollution Degree | 3 |
HARDWARE FEATURES
| Depth | 86 mm |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
TECHNICAL SPECIFICATION
| Overvoltage Category | III |
| Withstand Current | 105 A 40°C – 10 s for power circuit 210 A 40°C – 1 s for power circuit 30 A 40°C – 10 min for power circuit 61 A 40°C – 1 min for power circuit 100 A – 1 s for signalling circuit 120 A – 500 ms for signalling circuit 140 A – 100 ms for signalling circuit |
| Withstand voltage | 6 kV conforming to IEC 60947 |
Type
| Component Type | Contactor |
General Specification
| Average impedance | 2.5 mOhm – Ith 25 A 50 Hz for power circuit |
| Category | AC-4 AC-3 AC-1 AC-3e |
| Compatibility | LC1D |
| Electrical Durability | 0.6 Mcycles 25 A AC-1 at Ue <= 440 V 2 Mcycles 9 A AC-3 at Ue <= 440 V 2 Mcycles 9 A AC-3e at Ue <= 440 V |
| Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 25 A gG at <= 690 V coordination type 1 for power circuit 20 A gG at <= 690 V coordination type 2 for power circuit |
| Height | 77 mm |
| Motor Power | 2.2 kW at 220…230 V AC 50/60 Hz (AC-3) 4 kW at 380…400 V AC 50/60 Hz (AC-3) 4 kW at 415…440 V AC 50/60 Hz (AC-3) 5.5 kW at 500 V AC 50/60 Hz (AC-3) 5.5 kW at 660…690 V AC 50/60 Hz (AC-3) 2.2 kW at 400 V AC 50/60 Hz (AC-4) 2.2 kW at 220…230 V AC 50/60 Hz (AC-3e) 4 kW at 380…400 V AC 50/60 Hz (AC-3e) 4 kW at 415…440 V AC 50/60 Hz (AC-3e) 5.5 kW at 500 V AC 50/60 Hz (AC-3e) 5.5 kW at 660…690 V AC 50/60 Hz (AC-3e) |
| Operating | 3600 cyc/h at 60°C |
| Operating Time | 12…22 ms closing 4…19 ms opening |
| Terminal | Power circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end |
| Voltage | 0.3…0.6 Uc (-40…70°C):drop-out AC 50/60 Hz 0.8…1.1 Uc (-40…60°C):operational AC 50 Hz 0.85…1.1 Uc (-40…60°C):operational AC 60 Hz 1…1.1 Uc (60…70°C):operational AC 50/60 Hz |
| Weight | 0.32 kg |
| Width | 45 mm |
