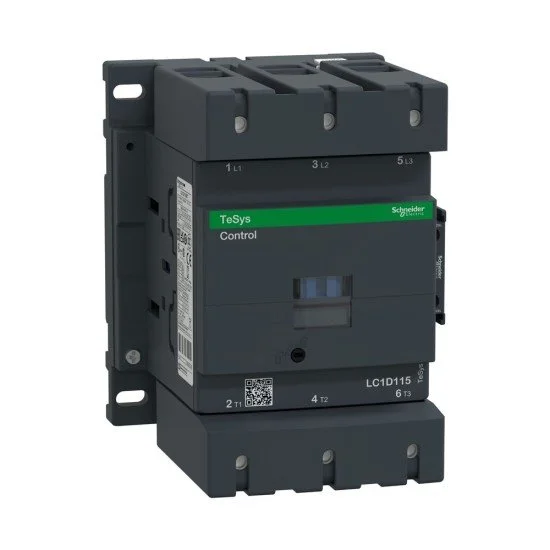

Schneider LC1D115M7 TeSys D Contactor
₨52,800.00
The latest Schneider LC1D115M7 TeSys D Contactor price in Pakistan is Rs. 52,800/- updated on September 8, 2026.
Product Details:
- TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features:
- Long durability with high operating rate
- Reliable performance under high environment
- Sustainability compliant
- IEC 60335-1 (Clause 30.2) certificate by authorized
- Easy installation and maintenance with compact design
HARDWARE FEATURES
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Standards | CSA C22.2 No 14 EN 60947-4-1 IEC 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 |
TECHNICAL SPECIFICATION
| Insulation Voltage | Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Power circuit: 1000 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified |
| Operational Current | 200 A (at <60°C) at <= 440 V AC AC-1 for power circuit 115 A (at <60°C) at <= 440 V AC AC-3 for power circuit 115 A (at <60°C) at <= 440 V AC AC-3e for power circuit |
| Operational Voltage | Power circuit: <= 1000 V AC 25…400 Hz Power circuit: <= 300 V DC |
| Withstand Current | 250 A 40°C – 10 min for power circuit 550 A 40°C – 1 min for power circuit 950 A 40°C – 10 s for power circuit 1100 A 40°C – 1 s for power circuit 100 A – 1 s for signalling circuit 120 A – 500 ms for signalling circuit 140 A – 100 ms for signalling circuit |
General Specification
| Circuit voltage | 220 V AC 50/60 Hz |
| Depth | 136 mm |
| Fuse Rating | 250 A gG at <= 690 V coordination type 1 for power circuit 200 A gG at <= 690 V coordination type 2 for power circuit 10 A gG for signalling circuit |
| Height | 158 mm |
| HP | 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors 40 hp at 230/240 V AC 50/60 Hz for 3 phases motors 75 hp at 460/480 V AC 50/60 Hz for 3 phases motors 100 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
| Motor Power | 30 kW at 220…230 V AC 50/60 Hz (AC-3) 55 kW at 380…400 V AC 50/60 Hz (AC-3) 59 kW at 415…440 V AC 50/60 Hz (AC-3) 75 kW at 500 V AC 50/60 Hz (AC-3) 80 kW at 660…690 V AC 50/60 Hz (AC-3) 65 kW at 1000 V AC 50/60 Hz (AC-3) 18.5 kW at 400 V AC 50/60 Hz (AC-4) 30 kW at 220…230 V AC 50/60 Hz (AC-3e) 55 kW at 380…400 V AC 50/60 Hz (AC-3e) 59 kW at 415…440 V AC 50/60 Hz (AC-3e) 75 kW at 500 V AC 50/60 Hz (AC-3e) 80 kW at 660…690 V AC 50/60 Hz (AC-3e) 65 kW at 1000 V AC 50/60 Hz (AC-3e) |
| Operating Time | 6…20 ms opening 20…50 ms closing |
| Terminal | Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…2.5 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…2.5 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…2.5 mm² – cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: solid without cable end Power circuit: connector 1 10…120 mm² – cable stiffness: flexible without cable end Power circuit: connector 2 10…50 mm² – cable stiffness: flexible without cable end Power circuit: connector 1 10…120 mm² – cable stiffness: flexible with cable end Power circuit: connector 2 10…50 mm² – cable stiffness: flexible with cable end Power circuit: connector 1 10…120 mm² – cable stiffness: solid without cable end Power circuit: connector 2 10…50 mm² – cable stiffness: solid without cable end |
| Weight | 2.5 kg |
| Width | 120 mm |
