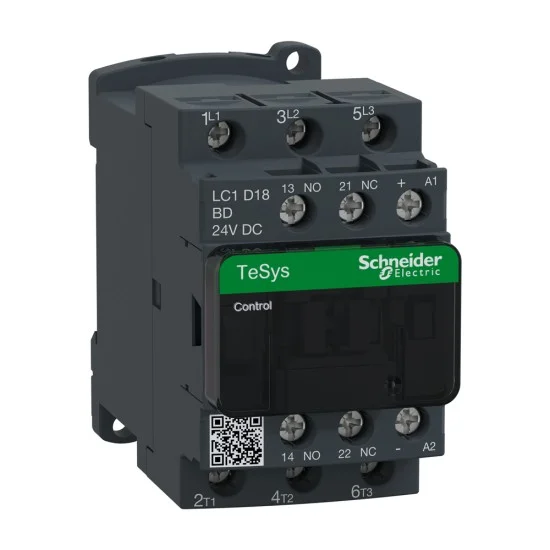

Schneider LC1D18BD TeSys D Contactor
₨ 15,200
The latest Schneider LC1D18BD TeSys D Contactor price in Pakistan is Rs. 15,200/- updated on October 26, 2026.
You can buy the Schneider LC1D18BD TeSys D Contactor online at Roshanex in Pakistan.
Product Details:
- TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features:
- New modern look & feel of all machines
- Easier to install and operate with multi-standard screws
- Improved fire resistancy with IEC 60335-1(Clause 30.2) certificate by authorized agency
- Anti-flammable refrigerants with IEC/EN/UL 60335-2-40(Annex JJ) certificate by authorized agency
- Digital customer experience for technical documents
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
HARDWARE FEATURES
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ CSA C22.2 No 60947-4-1 |
TECHNICAL SPECIFICATION
| Operational Current | 18 A (at <60°C) at <= 440 V AC AC-3 for power circuit 32 A (at <60°C) at <= 440 V AC AC-1 for power circuit 18 A (at <60°C) at <= 440 V AC AC-3e for power circuit |
| Operational Voltage | Power circuit: <= 690 V AC 25…400 Hz Power circuit: <= 300 V DC |
| Thermal Current | 10 A (at 60°C) for signalling circuit 32 A (at 60°C) for power circuit |
| Withstand Current | 145 A 40°C – 10 s for power circuit 240 A 40°C – 1 s for power circuit 40 A 40°C – 10 min for power circuit 84 A 40°C – 1 min for power circuit 100 A – 1 s for signalling circuit 120 A – 500 ms for signalling circuit 140 A – 100 ms for signalling circuit |
General Specification
| Compatibility | LC1D |
| Depth | 95 mm |
| Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 50 A gG at <= 690 V coordination type 1 for power circuit 35 A gG at <= 690 V coordination type 2 for power circuit |
| Height | 77 mm |
| HP | 1 hp at 115 V AC 50/60 Hz for 1 phase motors 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors 5 hp at 200/208 V AC 50/60 Hz for 3 phases motors 5 hp at 230/240 V AC 50/60 Hz for 3 phases motors 10 hp at 460/480 V AC 50/60 Hz for 3 phases motors 15 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
| Mechanical Durability | 30 Mcycles |
| Motor Power | 4 kW at 220…230 V AC 50/60 Hz (AC-3) 7.5 kW at 380…400 V AC 50/60 Hz (AC-3) 9 kW at 415…440 V AC 50/60 Hz (AC-3) 10 kW at 500 V AC 50/60 Hz (AC-3) 10 kW at 660…690 V AC 50/60 Hz (AC-3) 4 kW at 400 V AC 50/60 Hz (AC-4) 4 kW at 220…230 V AC 50/60 Hz (AC-3e) 7.5 kW at 380…400 V AC 50/60 Hz (AC-3e) 9 kW at 415…440 V AC 50/60 Hz (AC-3e) 10 kW at 500 V AC 50/60 Hz (AC-3e) 10 kW at 660…690 V AC 50/60 Hz (AC-3e) |
| Poles Description | 3P |
| Terminal | Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1…6 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1.5…6 mm² – cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² – cable stiffness: solid without cable end |
| Weight | 0.49 kg |
| Width | 45 mm |
