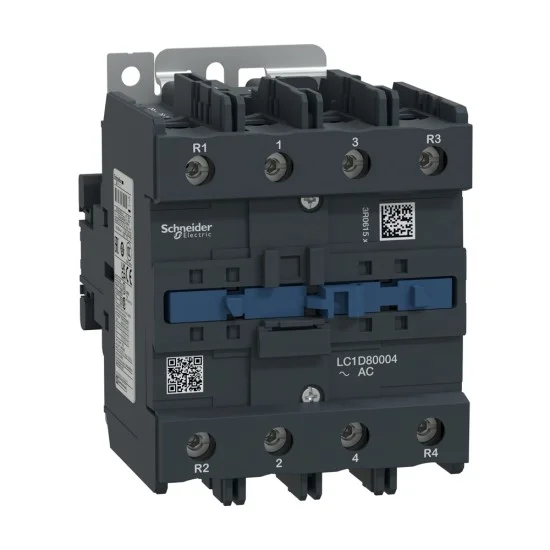

Schneider LC1D80004M7 TeSys Contactor
₨ 68,000
The latest Schneider LC1D80004M7 TeSys Contactor price in Pakistan is Rs. 68,000/- updated on October 29, 2026.
You can buy the Schneider LC1D80004M7 TeSys Contactor online at Roshanex in Pakistan.
Product Details:
- TeSys Deca contactor, 4-pole (4NO), for non-inductive load applications up to 125A/1000V AC-1. It provides a 220V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features:
- Long durability with high operating rate
- Reliable performance under high environment
- Sustainability compliant
- Multi standards certified makes it possible to wide application
- Easy installation and maintenance with compact design
Also, you can browse similar products at Roshanex. In addition, our team can help you choose the right model before you order.
HARDWARE FEATURES
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Standards | EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ IEC 60335-1:Clause 30.2 |
TECHNICAL SPECIFICATION
| Operational Current | 125 A (at <60°C) at <= 1000 V AC AC-1 for power circuit 80 A (at <60°C) at <= 440 V AC AC-3 for power circuit 80 A (at <60°C) at <= 440 V AC AC-3e for power circuit 55 A (at <60°C) at <= 400 V AC AC-4 for power circuit |
| Operational Voltage | Power circuit: <= 300 V DC 25…400 Hz Power circuit: <= 690 V AC |
| Withstand Current | 640 A 40°C – 10 s for power circuit 990 A 40°C – 1 s for power circuit 135 A 40°C – 10 min for power circuit 320 A 40°C – 1 min for power circuit |
General Specification
| Circuit voltage | 220 V AC 50/60 Hz |
| Depth | 125 mm |
| Electrical Durability | 0.8 Mcycles 125 A AC-1 at Ue <= 440 V |
| Fuse Rating | 200 A gG at <= 690 V coordination type 1 for power circuit 160 A gG at <= 690 V coordination type 2 for power circuit |
| Height | 127 mm |
| Mechanical Durability | 4 Mcycles |
| Motor Power | 22 kW at 220…230 V AC 50/60 Hz 37 kW at 380…400 V AC 50/60 Hz 45 kW at 660…690 V AC 50/60 Hz 55 kW at 500 V AC 50/60 Hz 45 kW at 415…440 V AC 50/60 Hz |
| Poles Description | 4P |
| Terminal | Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…2.5 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end Power circuit: connector 1 4…50 mm² – cable stiffness: flexible without cable end Power circuit: connector 2 4…25 mm² – cable stiffness: flexible without cable end Power circuit: connector 1 4…50 mm² – cable stiffness: flexible with cable end Power circuit: connector 2 4…16 mm² – cable stiffness: flexible with cable end Power circuit: connector 1 4…50 mm² – cable stiffness: solid without cable end Power circuit: connector 2 4…25 mm² – cable stiffness: solid without cable end |
| Weight | 1.76 kg |
| Width | 96 mm |
