Industrial Automation & Circuit Protection, Industrial Contactors, SCHNEIDER ELECTRIC

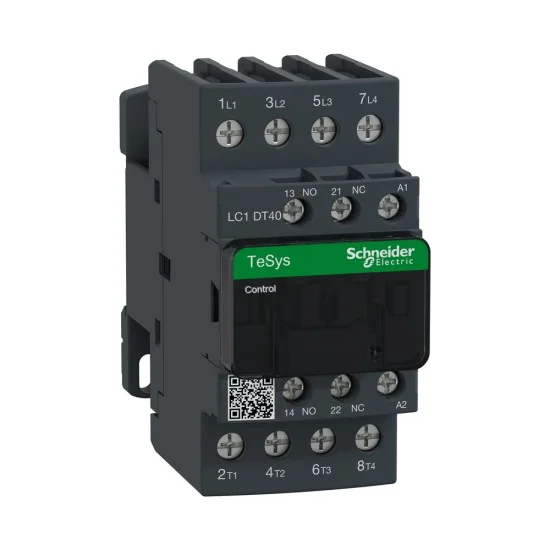

Schneider LC1DT40M7 TeSys Contactor
₨20,000.00
The latest Schneider LC1DT40M7 TeSys Contactor price in Pakistan is Rs. 20,000/- updated on September 9, 2026.
Product Details:
- TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 40A/440V AC-1. It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features:
- New modern look & feel of all machines
- Designed to meet the requirements of industrial and HVAC applications
- Easier to install and operate with multi-standard screws
- With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
- Digital customer experience for technical documents
HARDWARE FEATURES
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 IEC 60335-1 |
TECHNICAL SPECIFICATION
| Operational Current | 40 A (at <60°C) at <= 440 V AC AC-1 for power circuit |
| Operational Voltage | Power circuit: <= 690 V AC 25…400 Hz Power circuit: <= 300 V DC |
| Thermal Current | 10 A (at 60°C) for signalling circuit 40 A (at 60°C) for power circuit |
| Withstand Current | 50 A 40°C – 10 min for power circuit 120 A 40°C – 1 min for power circuit 240 A 40°C – 10 s for power circuit 380 A 40°C – 1 s for power circuit 100 A – 1 s for signalling circuit 120 A – 500 ms for signalling circuit 140 A – 100 ms for signalling circuit |
| Withstand voltage | 6 kV conforming to IEC 60947 |
General Specification
| Circuit voltage | 220 V AC 50/60 Hz |
| Compatibility | LC1D |
| Depth | 99 mm |
| Electrical Durability | 1.4 Mcycles 40 A AC-1 at Ue <= 440 V |
| Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit 40 A gG at <= 690 V coordination type 2 for power circuit |
| Height | 91 mm |
| Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 450 A at 440 V for power circuit conforming to IEC 60947 |
| Mechanical Durability | 15 Mcycles |
| Poles Description | 4P |
| Terminal | Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 2.5…10 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 2.5…10 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 2.5…10 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 2.5…10 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 2.5…16 mm² – cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 2.5…16 mm² – cable stiffness: solid without cable end |
| Weight | 0.425 kg |
| Width | 45 mm |
