Industrial Automation & Circuit Protection, Industrial Capacitor, SCHNEIDER ELECTRIC

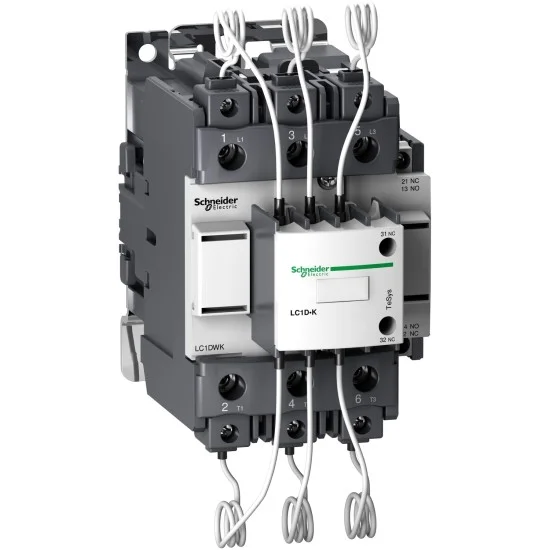

Schneider LC1DWK12 E7 TeSys D Capacitor Duty Contactors
₨66,000.00
The latest Schneider LC1DWK12 E7 TeSys D Capacitor Duty Contactors price in Pakistan is Rs. 66,000/- updated on September 10, 2026.
Documents:
Schneider LC1DWK12 E7 TeSys D Capacitor Duty Contactors Data Sheet.pdf
Summary
| [Ie] rated operational current | 125 A (<= 140 °F (60°C)) at <= 440 V AC AC-1 power circuit |
HARDWARE FEATURES
| Auxiliary Contact Composition | 1 NO + 2 NC signalling circuit 3 NO early make power circuit |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Weight | 1.65 kg |
Type
| product or component type | Capacitor duty contactor |
General Specification
| Connections – terminals | Screw clamp terminals 2 cable(s) 1…2.5 mm² – cable stiffness: flexible – with cable end…Screw clamp terminals 1 cable(s) 1…4 mm² – cable stiffness: flexible – without cable end |
| Electrical Durability | 300000 cycles at Ue 400 V 200000 cycles at Ue 690 V |
| Poles Description | 3P |
| Tightening Torque | Power circuit : 9 N.m – on connector Control circuit : 1.7 N.m – on screw clamp terminal |
| [Uc] control circuit voltage | 48 V AC 50/60 Hz |
| [Ue] Rated Operational Voltage | <= 690 V AC 50/60 Hz for power circuit |
